Part Number # CSWN-1/0-516
SKU # 2288804
CSWN-1/0-516
ILSCO CSWN-1/0-516 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CSWN-1/0-516
SKU # 2288804
Ilsco CSWN-1/0-516 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CSWN-1/0-516 |
| SKU #: | 2288804 |
| Barrel Size: | 3/4 in L |
| Barrel Type: | Chamfered/Narrow Short |
| Dimensions: | 0.39 in ID x 0.515 in OD |
| Mounting Hole Size: | 0.3431 in Dia |
| Specifications: | 13/16 in L Strip |
| Tongue Size: | 0.875 in L x 0.5 in W x 0.125 in THK |
| Type: | 1-Hole Type CSWN |
| UNSPSC: | 39121448 |
| UPC: | 00783669685381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO CSWN-1/0-516 ILSCO SureCrimp Lug Compression Connector Sight Hole
Brand: Ilsco
Part Number: CSWN-1/0-516
ILSCO SureCrimp Lug Compression Connector Sight Hole, 1-Hole Type CSWN, Flex Copper Conductor, 6 to 1/0 AWG Conductor, Die Code: 42, 600 VAC, 5/16 in Stud, 0.875 in L x 0.5 in W x 0.125 in THK Tongue, 1.981 in Overall Length, Chamfered/Narrow Short Barrel, 3/4 in L Barrel, 13/16 in L Strip, 90 deg C, 0.3431 in Dia Mounting Hole, Copper, Pink, 0.39 in ID x 0.515 in OD
Additional Description: ILSC-CSWN-1/0-516 CU CMP NARROW, 1/0 KCMIL, BO LT 5/16, T UL CSA 5/16, T
Catalog Description: Surecrimp Copper Compression Lug, Conductor Size 1/0, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Narrow Tang, Tin Plated, UL, CSA
CSWN-1/0-516 Application
Terminating Connector, Grounding and Bonding ApplicationsCSWN-1/0-516 Item Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated
- Maximum conductivity and excellent crimping characteristics
- Narrow tongue width for limited space applications
- Standard barrel length with chamfered entry
- Sight hole and chamfered barrel for visual inspection of proper cable insertion
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless too
CSWN-1/0-516 Standards
UL 486A/B/467 File No. E6207|CSA File No. LR29601|NEBS3SKU #2288804Part Number #CSWN-1/0-516UNSPSC39121448UPC00783669685381

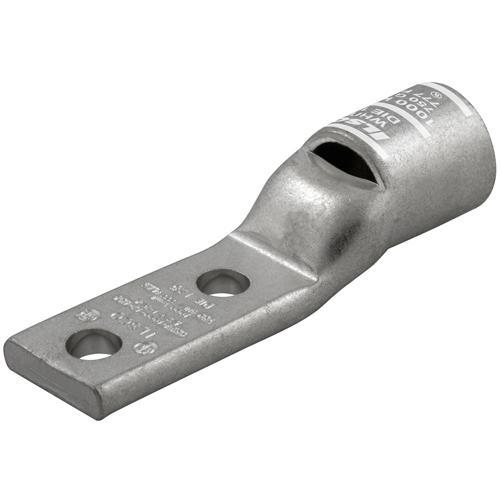

Image provided may only be a representation of final product and may include optional equipment
