Part Number # CSWS-1/0-12
SKU # 2280078
Image Disclaimers Message
CSWS-1/0-12

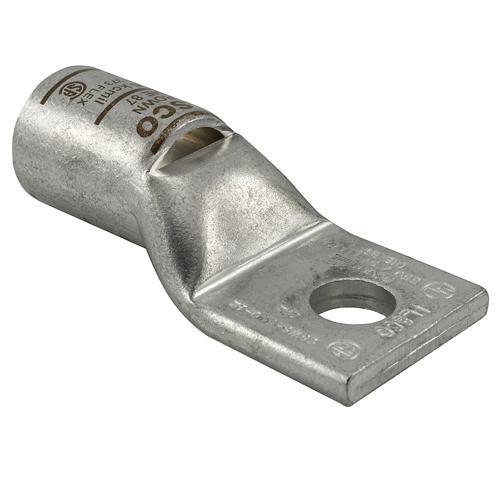

ILSCO CSWS-1/0-12 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CSWS-1/0-12
SKU # 2280078
$170.10 / 10Each
Ilsco CSWS-1/0-12 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CSWS-1/0-12 |
| SKU #: | 2280078 |
| Barrel Size: | 0.39 in ID x 0.515 in OD x 0.75 in L |
| Barrel Type: | Chamfered/Short/Standard |
| Conductor Size: | 6 to 1/0, 6 to 1/0 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.738 in W |
| Mounting Hole Size: | 0.562, 0.562 in |
| Overall Length: | 2.356, 2.356 in |
| Series: | CSWS |
| Specifications: | 0.812 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.25 in L x 0.738 in W x 0.125 in THK |
| Type: | 1-Hole |
| Color: | Pink |
| Country of origin: | MX |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669651201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.10 / 10Each
Quantity:
- ILSCO SureCrimp Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 6 to 1/0 AWG Conductor, Die Code: ILD-42, 600 to 35 kV V AC, 1/2 in Stud, 1.25 in L x 0.738 in W x 0.125 in THK Tongue, 2.356 in Overall Length, Chamfered/Short/Standard Barrel, 0.39 in ID x 0.515 in OD x 0.75 in L Barrel, 0.812 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Tin Plated Copper, Pink, 0.738 in W
CSWS-1/0-12 Application
Terminating Connector ApplicationsCSWS-1/0-12 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- Chamfered barrel for visual inspection of proper cable insertion
- #1 flexible alternate conductor size
- Electro-tin plated
- Standard barrel length with chamfered entry
CSWS-1/0-12 Standards
NEBS Level 3|UL 453G|UL 467|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2280078Part Number #CSWS-1/0-12UNSPSC39121448UPC00783669651201
