Part Number # CSWS-2/0-38
SKU # 2178210
Image Disclaimers Message
CSWS-2/0-38

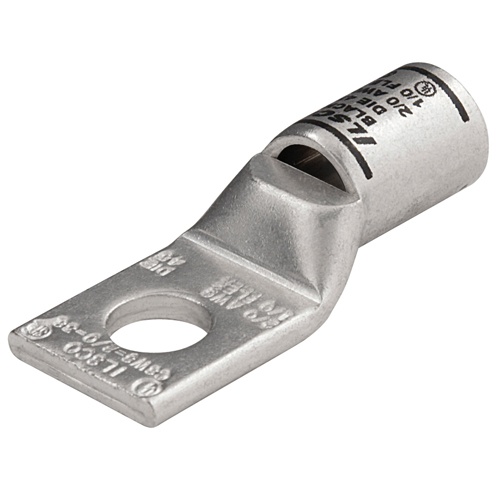

ILSCO CSWS-2/0-38 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CSWS-2/0-38
SKU # 2178210
$188.60 / 10Each
Ilsco CSWS-2/0-38 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CSWS-2/0-38 |
| SKU #: | 2178210 |
| Barrel Size: | 0.437 in ID x 0.562 in OD x 0.75 in L |
| Barrel Type: | Chamfered/Short/Standard |
| Conductor Size: | 4 to 2/0, 4 to 2/0 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.811 in W |
| Mounting Hole Size: | 0.406, 0.406 in |
| Overall Length: | 2.021, 2.021 in |
| Series: | CSWS |
| Specifications: | 0.812 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.875 in L x 0.811 in W x 0.125 in THK |
| Type: | 1-Hole |
| Color: | Black |
| Country of origin: | MX |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669637052 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.60 / 10Each
Quantity:
- ILSCO SureCrimp Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 4 to 2/0 AWG Conductor, Die Code: ILD-45, 600 to 35 kV V AC, 3/8 in Stud, 0.875 in L x 0.811 in W x 0.125 in THK Tongue, 2.021 in Overall Length, Chamfered/Short/Standard Barrel, 0.437 in ID x 0.562 in OD x 0.75 in L Barrel, 0.812 in L Wire Strip, 90 deg C, 0.406 in Mounting Hole, Tin Plated Copper, Black, 0.811 in W
CSWS-2/0-38 Application
Terminating Connector ApplicationsCSWS-2/0-38 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- Chamfered barrel for visual inspection of proper cable insertion
- 1/0 AWG flexible alternate conductor size
- Electro-tin plated
- Standard barrel length with chamfered entry
CSWS-2/0-38 Standards
NEBS Level 3|UL 453G|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2178210Part Number #CSWS-2/0-38UNSPSC39121448UPC00783669637052
