CSWS-2-14

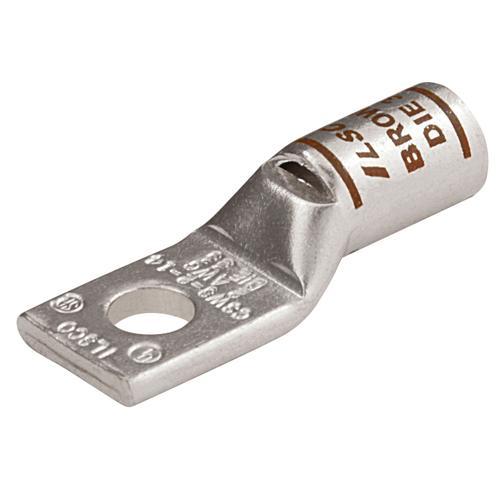

ILSCO CSWS-2-14 ILSCO SureCrimp Lug Compression Connector Sight Hole
Part Number # CSWS-2-14
SKU # 2277243
$357.75 / 25Each
Ilsco CSWS-2-14 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CSWS-2-14 |
| SKU #: | 2277243 |
| Barrel Size: | 0.312 in ID x 0.421 in OD x 0.625 in L |
| Barrel Type: | Chamfered/Short/Standard |
| Conductor Size: | 6 to 2, 6 to 2 AWG |
| Conductor Type: | Flex Copper |
| Dimensions: | 0.599 in W |
| Mounting Hole Size: | 0.281, 0.281 in |
| Overall Length: | 1.591, 1.591 in |
| Series: | CSWS |
| Specifications: | 0.687 in L Wire Strip |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.68 in L x 0.599 in W x 0.109 in THK |
| Type: | 1-Hole |
| Color: | Brown |
| Country of origin: | US |
| Material: | Tin Plated Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121448 |
| UPC: | 00783669633016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$357.75 / 25Each
Quantity:
- ILSCO SureCrimp Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 6 to 2 AWG Conductor, Die Code: ILD-33, 600 to 35 kV V AC, 1/4 in Stud, 0.68 in L x 0.599 in W x 0.109 in THK Tongue, 1.591 in Overall Length, Chamfered/Short/Standard Barrel, 0.312 in ID x 0.421 in OD x 0.625 in L Barrel, 0.687 in L Wire Strip, 90 deg C, 0.281 in Mounting Hole, Tin Plated Copper, Brown, 0.599 in W
CSWS-2-14 Application
Terminating Connector ApplicationsCSWS-2-14 Item Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- Chamfered barrel for visual inspection of proper cable insertion
- #2 solid alternate conductor size
- Electro-tin plated
- Standard barrel length with chamfered entry
CSWS-2-14 Standards
NEBS Level 3|UL 467|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99SKU #2277243Part Number #CSWS-2-14UNSPSC39121448UPC00783669633016
