Brand: Ilsco

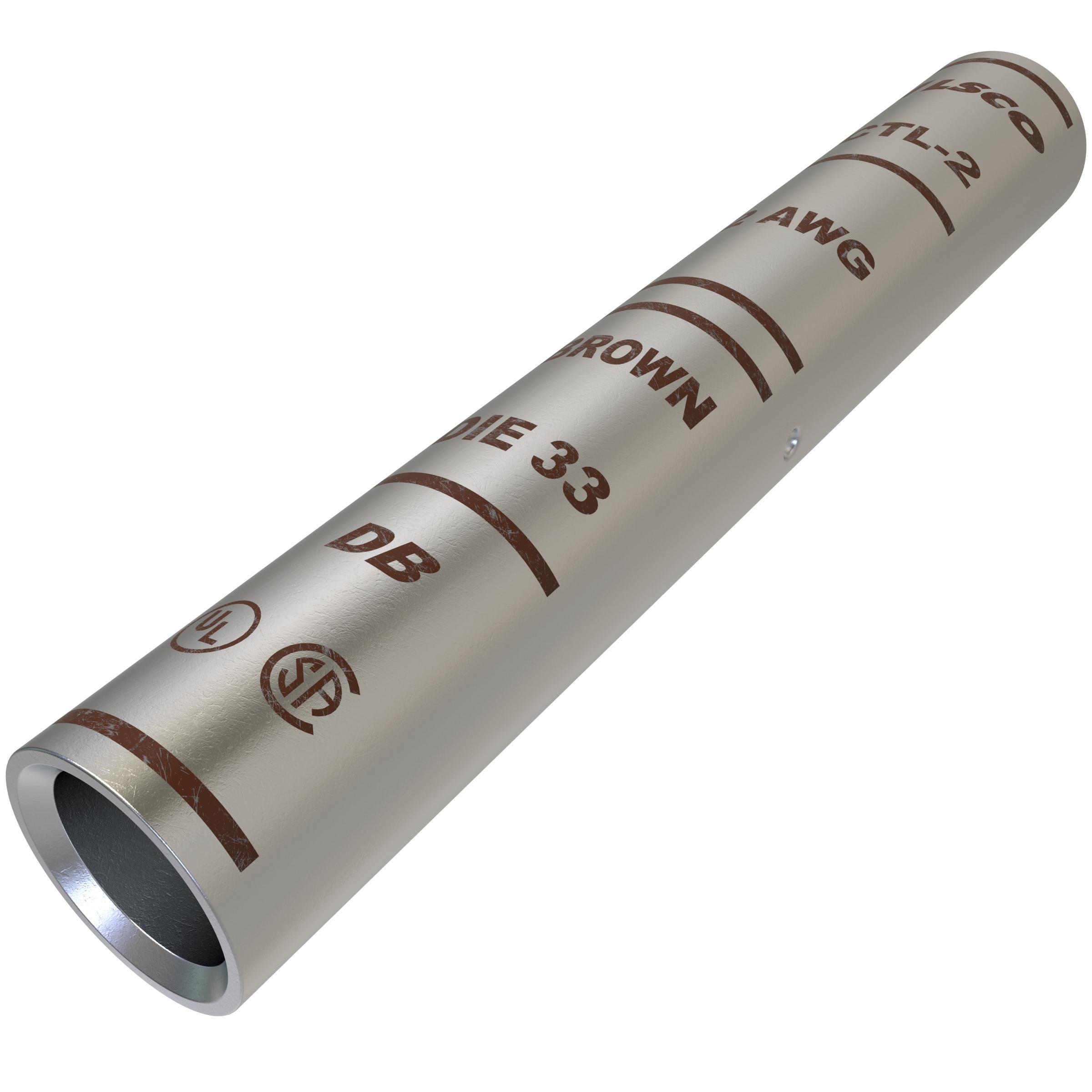

ILSCO CTL-2 ILSCO SureCrimp Compression Sleeve
Part Number # CTL-2
SKU # 2291553

Brand: Ilsco
CTL-2
ILSCO CTL-2 ILSCO SureCrimp Compression Sleeve
Part Number # CTL-2
SKU # 2291553
$673.75 / 25Each
Ilsco CTL-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | CTL-2 |
| SKU #: | 2291553 |
| Dimensions: | 0.312 in ID x 0.421 in OD |
| Finish: | Electro-Plated Tin |
| Series: | CTL |
| Specifications: | 1-3/8 in L Stripe |
| Manufacturer Name: | nVent |
| UNSPSC: | 39121449 |
| UPC: | 00783669127751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$673.75 / 25Each
Quantity:
- ILSCO SureCrimp Compression Sleeve, Long Barrel, Series: CTL, Copper Conductor, 2 AWG Conductor, Die Code: I-33, 2-5/8 in Length, Crimp Connector, 600 V AC, 90 deg C, 1-3/8 in L Stripe, Copper, Electro-Plated Tin, Brown, 0.312 in ID x 0.421 in OD
CTL-2 Application
For use with splicer/reducer, grounding and bonding applicationsCTL-2 Item Features
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO dieless tools and BURNDY Y644M dieless tool
- Reduces inventory requirements
- 2 AWG alternate conductor size
- 6 to 2 AWG expanded conductor size
- Insures maximum cable insertion
CTL-2 Standards
CSA File No. LR29601|NEBS Level 3|UL 486A-BIUL 453G|UL 467 File No. E6207|ECCN EAR99|PROP65: Cancer -www.p65warnings.ca.govSKU #2291553Part Number #CTL-2UNSPSC39121449UPC00783669127751
Image provided may only be a representation of final product and may include optional equipment
