Part Number # GTA-2-2
SKU # 2292066
GTA-2-2

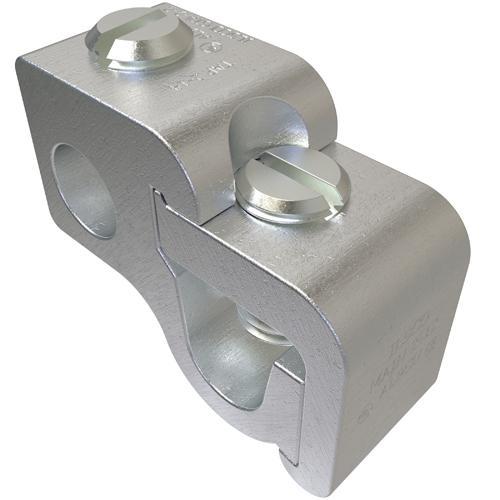

ILSCO GTA-2-2 ILSCO ClearChoice Parallel Tap Connector
Part Number # GTA-2-2
SKU # 2292066
Ilsco GTA-2-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | GTA-2-2 |
| SKU #: | 2292066 |
| Dimensions: | 1-1/4 in L x 9/16 in W x 1 in H |
| UNSPSC: | 39121408 |
| UPC: | 00783669342109 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO GTA-2-2 ILSCO ClearChoice Parallel Tap Connector
Brand: Ilsco
Part Number: GTA-2-2
ILSCO ClearChoice Parallel Tap Connector, Type GTA Dual Rated Lay-In, Stranded Aluminum/Copper Conductor, 12 to 2 AWG Run/Main, 14 to 2 AWG Tap, 600 VAC, 90 deg C, Aluminum, Electro-Plated Tin, 1-1/4 in L x 9/16 in W x 1 in H Dimensions
Additional Description: ILSC-GTA-2-2 AL MEC (M)2-12 (T)2-12 1-14CU T UL CSA
Catalog Description: Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 2-12, Tap Range 2-12 AL, 2-14 CU, Tin Plated, UL, CSA
GTA-2-2 Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Compact design
- Range taking for reduced inventories and flexibility
- Reusable
- Lay-in main conductor
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Saves space and reduces installation time
- Permits inventories to be kept to a minimum
- Provides efficient use and flexibility in the field
- No need to break the feeder cable
- Eliminates taping
GTA-2-2 Standards
CSA File No LR29601|UL File No E6207/453G/486A/B|ECCN EAR99SKU #2292066Part Number #GTA-2-2UNSPSC39121408UPC00783669342109
Image provided may only be a representation of final product and may include optional equipment
