Part Number # GTA-250-0-W/C
SKU # 2294861
Image Disclaimers Message
GTA-250-0-W/C

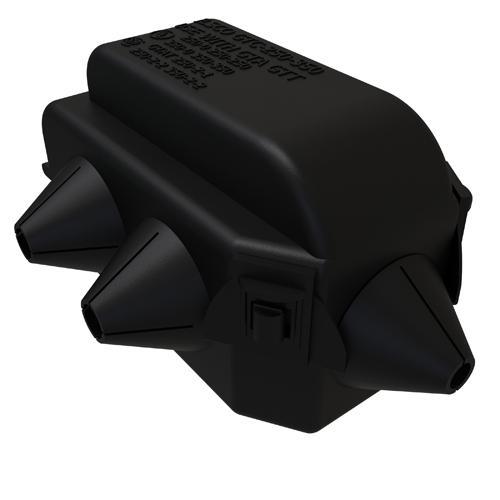

ILSCO GTA-250-0-W/C ILSCO ClearChoice Parallel Tap Connector
Part Number # GTA-250-0-W/C
SKU # 2294861
Ilsco GTA-250-0-W/C Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | GTA-250-0-W/C |
| SKU #: | 2294861 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 7/8 in L x 2 in W x 1-7/16 in H |
| Finish: | Electro-Plated Tin |
| Specifications: | Slotted Hex Tap |
| Tap Size: | 14 to 1/0, 14 to 1/0 AWG |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type GTA Dual Rated Lay-In |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669346459 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO GTA-250-0-W/C ILSCO ClearChoice Parallel Tap Connector
Brand: Ilsco
Part Number: GTA-250-0-W/C
ILSCO ClearChoice Parallel Tap Connector, Type GTA Dual Rated Lay-In, Aluminum/Copper Conductor, 1/0 AWG to 250 kcmil Run/Main, 14 to 1/0 AWG Tap, 600 VAC, Specifications: Slotted Hex Tap, 90 deg C, Aluminum, Electro-Plated Tin, 7/8 in L x 2 in W x 1-7/16 in H Dimensions
Additional Description: ILSC-GTA-250-0-W/C AL MEC(M)250-1/0(T)1/0-12AL/-1 4CU T UL WITH COVER UL WITH COVER UL W UL
Catalog Description: Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 250-1/0, Tap Range 1/0-12 AL, 1/0-14 CU, Tin Plated, UL, CSA, Includes Cover
GTA-250-0-W/C Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Compact design
- Range taking for reduced inventories and flexibility
- Reusable
- Lay-in main conductor
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Saves space and reduces installation time
- Permits inventories to be kept to a minimum
- Provides efficient use and flexibility in the field
- No need to break the feeder cable
- Eliminates taping
GTA-250-0-W/C Standards
CSA File No LR29601|UL File No E6207/453G/486A/B|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2294861Part Number #GTA-250-0-W/CUNSPSC39121408UPC00783669346459
