Part Number # H2L-35-2N
SKU # 2195264
Image Disclaimers Message
H2L-35-2N

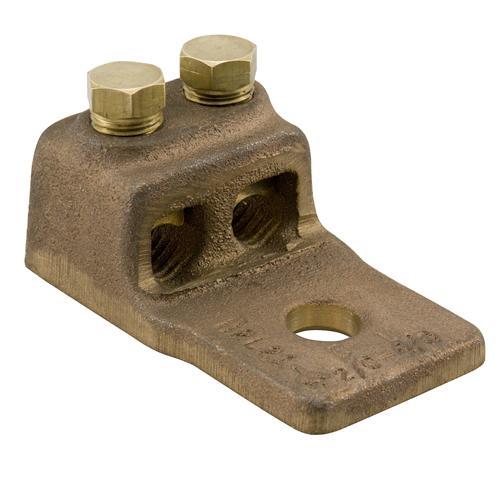

ILSCO H2L-35-2N ILSCO ClearChoice Mechanical Lug
Part Number # H2L-35-2N
SKU # 2195264
Ilsco H2L-35-2N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | H2L-35-2N |
| SKU #: | 2195264 |
| Conductor Size: | 250 to 350, 250 to 350 kcmil |
| Conductor Type: | Copper |
| Dimensions: | 4-7/16 in L |
| Specifications: | 2-1/8 in W Collar, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 2-1/4 in W x 5/16 in THK |
| Tongue Type: | Straight |
| Type: | Type HL Multi-Conductor |
| Country of origin: | US |
| Material: | Cast Bronze |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669460544 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO H2L-35-2N ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: H2L-35-2N
ILSCO ClearChoice Mechanical Lug, Type HL Multi-Conductor, Copper Conductor, 250 to 350 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2-1/4 in W x 5/16 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: 2-1/8 in W Collar, 1-3/4 in Mounting Hole Spacing, 90 deg C, Cast Bronze, 4-7/16 in L Dimensions
Additional Description: ILSC-H2L-35-2N (N) BRZ MEC (2)250-350 9/16-1-3/4 UL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Cast Bronze Mechanical Lug, Conductor Range 350-250, 2 Ports, 2 Holes, 1/2in Bolt Size, UL
H2L-35-2N Application
For terminating connectorH2L-35-2N Item Features
- Re-usable
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Manufactured from high strength cast bronze provides maximum conductivity and a high degree of breakage resistance
- Provides efficient use and flexibility in the field
- Compact design saves space and reduces installation time
- Ensures reliability for copper conductor
- Pressure pad/saddle provides positive grip and low contact resistance
- Requires less space than two individual connectors
- 2-studs
- Application versatility
- For copper conductor only
- 9/16 in Dia mounting hole
H2L-35-2N Standards
UL 486A-B/8M24/E158587|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2195264Part Number #H2L-35-2NUNSPSC39121408UPC00783669460544
