Part Number # IK3-6
SKU # 2391179
IK3-6

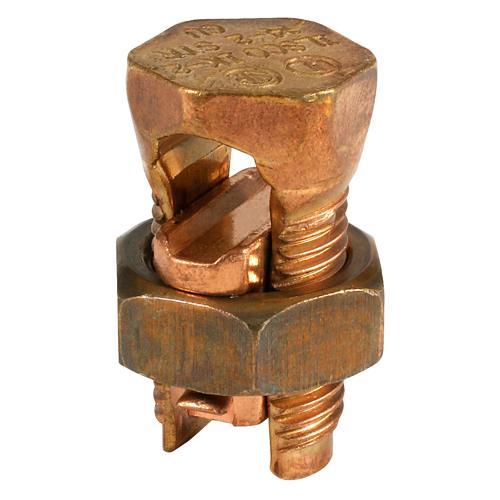

ILSCO IK3-6 Clearchoice Split Bolt Connector
Part Number # IK3-6
SKU # 2391179
Ilsco IK3-6 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | IK3-6 |
| SKU #: | 2391179 |
| Conductor Size: | 10 to 6 AWG, 8 AWG |
| Conductor Type: | Compact/Compressed/Concentric/Solid Copper |
| Dimensions: | 0.166 in ID x 1.109 in H x 0.625 in W |
| Specifications: | 0.166 in Split, 5/8 in Hex Nut, 165 in-lb Recommended Torque |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type IK3 3-Wire |
| Country of origin: | US |
| Material: | Copper Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669813555 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO IK3-6 Clearchoice Split Bolt Connector
Brand: Ilsco
Part Number: IK3-6
ILSCO ClearChoice Split Bolt Connector, Type IK3 3-Wire, Compact/Compressed/Concentric/Solid Copper Conductor, 10 to 6 AWG, 8 AWG Conductor, 0.5 x 1.109 in Bolt, 2000 VAC, 0.166 in Split, 5/8 in Hex Nut, 165 in-lb Recommended Torque, 90 deg C, Copper Alloy, 0.166 in ID x 1.109 in H x 0.625 in W
Additional Description: ILSC-IK3-6 CU MEC(R)6S0L-10SOL(T)16STR UL CSA
Catalog Description: Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA
IK3-6 Application
Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniquesIK3-6 Item Features
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Precision tooled threads
- For use with copper conductor types solid, compact, compressed, concentric
- Suitable for direct burial in earth or concrete
- Application versatility
- Allows maximum torque to be applied
IK3-6 Standards
CSA Certified|RUS Certified|UL File No. E12822/467|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2391179Part Number #IK3-6UNSPSC39121408UPC00783669813555
Image provided may only be a representation of final product and may include optional equipment
