Part Number # IPC-4/0-6
SKU # 2256835
IPC-4/0-6
ILSCO IPC-4/0-6 ILSCO KUP-L-Tap Insulation Piercing Connector
Part Number # IPC-4/0-6
SKU # 2256835
Ilsco IPC-4/0-6 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | IPC-4/0-6 |
| SKU #: | 2256835 |
| Conductor Size: | 4 to 4/0, 4 to 4/0 AWG |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1-7/8 in H x 1 in W |
| Finish: | Tin Plated |
| Specifications: | 13 ft-lb Torque, 75 A Copper, 60 A Aluminum |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type IPC Dual Rated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669532692 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO IPC-4/0-6 ILSCO KUP-L-Tap Insulation Piercing Connector
Brand: Ilsco
Part Number: IPC-4/0-6
ILSCO KUP-L-Tap Insulation Piercing Connector, Type IPC Dual Rated, Aluminum/Copper Conductor, 4 to 4/0 AWG Conductor, 1/2 in Bolt, 600 VAC, Specifications: 13 ft-lb Torque, 75 A Copper, 60 A Aluminum, 90 deg C, Copper, Tin Plated, Black, 1-7/8 in H x 1 in W Dimensions
Additional Description: ILSC-IPC-4/0-6 IPC (R)4/0-4 (T)6-14 T UL CSA
Catalog Description: KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-4, Tap Range 6-14, Tin Plated, UL, CSA
IPC-4/0-6 Item Features
- Body is molded from tough, resilient glass filled nylon provides high degree of breakage resistance and long dependable use
- Compact design saves space
- Tin plated copper contact teeth easily penetrates most types of insulation
- Insulation piercing, no need to strip the conductor which saves installation time
- Perforated end tabs break out easily by hand
- Pre-filled with silicone lubricant prevents oxidation and moisture from entering the contact area
- Versatile - can be used as a splice or tap connector
- Increased safety contains no external energized parts, can be installed "hot" on energized conductors providing tap conductor is not under load
- Horizontal line grid provides a visual guide for proper installation of conductors
- For use with class B or C stranded conductor
- Dual-rated for aluminum and copper conductor
- Removable end tabs
- 14 to 6 AWG tap/secondary conductor size
IPC-4/0-6 Standards
CSA File No. LR29601|UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2256835Part Number #IPC-4/0-6UNSPSC39121408UPC00783669532692

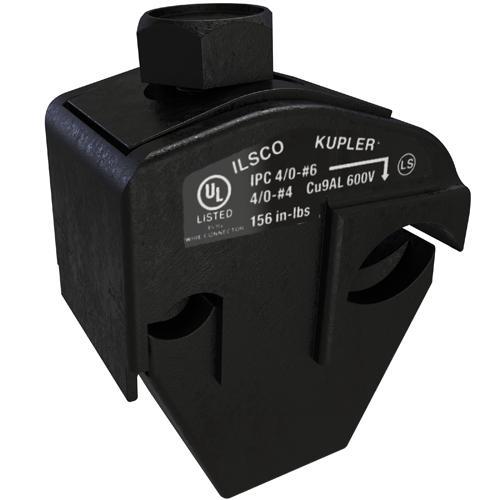

Image provided may only be a representation of final product and may include optional equipment
