Part Number # NB-350-30
SKU # 2188507
Image provided may only be a representation of
final product and may include optional equipment
NB-350-30

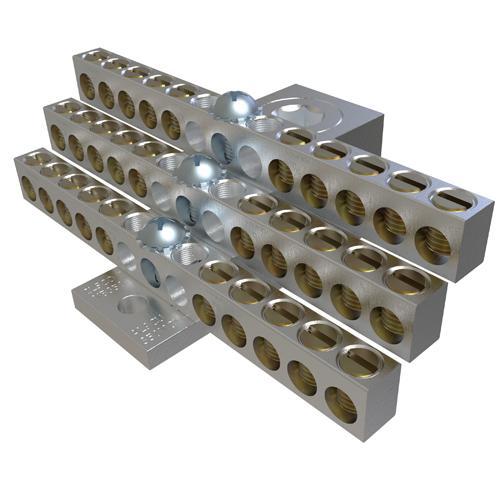

ILSCO NB-350-30 ILSCO ClearChoice Mechanical Neutral Bar
Part Number # NB-350-30
SKU # 2188507
Ilsco NB-350-30 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | NB-350-30 |
| SKU #: | 2188507 |
| Cable Tap: | 14 to 4, 14 to 4 AWG |
| Finish: | Electro-Plated Tin |
| Mounting Hole Quantity: | 2 |
| Series: | NB Series |
| Tap Quantity: | 30 |
| Type: | Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669698756 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO NB-350-30 ILSCO ClearChoice Mechanical Neutral Bar
Brand: Ilsco
Part Number: NB-350-30
ILSCO ClearChoice Mechanical Neutral Bar, Dual Rated, Series: NB Series, 2.5313 in Bar Width, 4.0938 in Bar Length, 1.54 in Bar Height, 2000 VAC, 14 to 4 AWG Cable Tap, 6 AWG to 350 kcmil Cable Main, 30 Tap Quantity, 2 Mounting Hole Quantity, Aluminum, Electro-Plated Tin
Additional Description: ILSC-NB-350-30 AL MEC (L)350-6 (T)(30)14-6 T UR
Catalog Description: Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 30 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA
NB-350-30 Application
For tap connectorNB-350-30 Item Features
- Preassembled, stacked neutral bars
- Available with phenolic base
- Fabricated from high strength 6061-T6 aluminum alloy
- Compact, space saving design offers multiple range taking flexibility and is suitable for grounding applications
- Provides insulation from mounting surface
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Slot tap hex
- 3/8 in main hex
- 10 to 32 tapped mounting holes
NB-350-30 Standards
CSA LR-29601|UL 486A/B|E6207|UR CertifiedSKU #2188507Part Number #NB-350-30UNSPSC39121408UPC00783669698756
