Part Number # NBAS-010-1-B
SKU # 2343098
NBAS-010-1-B
ILSCO NBAS-010-1-B ILSCO ClearChoice Neutral Bar
Part Number # NBAS-010-1-B
SKU # 2343098
Ilsco NBAS-010-1-B Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | NBAS-010-1-B |
| SKU #: | 2343098 |
| Finish: | Electro Tin Plated |
| Mounting Hole Quantity: | 1 |
| Tap Quantity: | 13 |
| Type: | Type NBAS Dual Rated |
| Connection type: | Screw |
| Material: | Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669005592 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO NBAS-010-1-B ILSCO ClearChoice Neutral Bar
Brand: Ilsco
Part Number: NBAS-010-1-B
ILSCO ClearChoice Neutral Bar, Type NBAS Dual Rated, 0.312 in Bar Width, 4.104 in Bar Length, 0.437 in Bar Height, 600 VAC, Screw Connection, #14 to 4 AWG Cable Main, 13 Tap Quantity, 1 Mounting Hole Quantity, Aluminum Alloy, Electro Tin Plated
Additional Description: ILSC-NBAS-010-1-B AL MEC (10) 4-14 (1) MTG T UR CSA
Catalog Description: Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 10 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
NBAS-010-1-B Application
For use with aluminum/copper conductorNBAS-010-1-B Item Features
- Manufactured from high strength aluminum alloy
- Electro tin plated for low contact resistance
- Low contact resistance
- Application versatility
- Ensures reliability
- Headless slotted screw
NBAS-010-1-B Standards
UL Listed|CSA File No. LR 2601|UL Recognized|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2343098Part Number #NBAS-010-1-BUNSPSC39121408UPC00783669005592

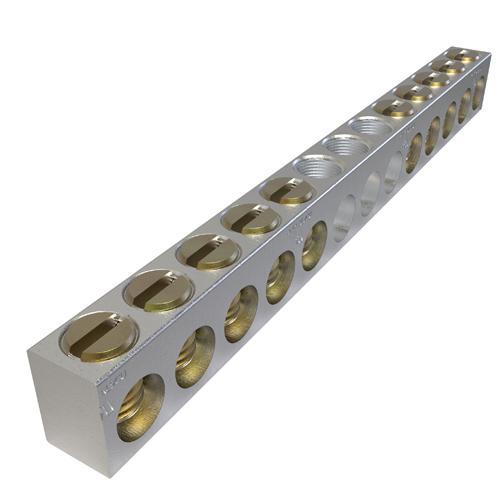

Image provided may only be a representation of final product and may include optional equipment
