Part Number # NBCE-1336-2
SKU # 2372105

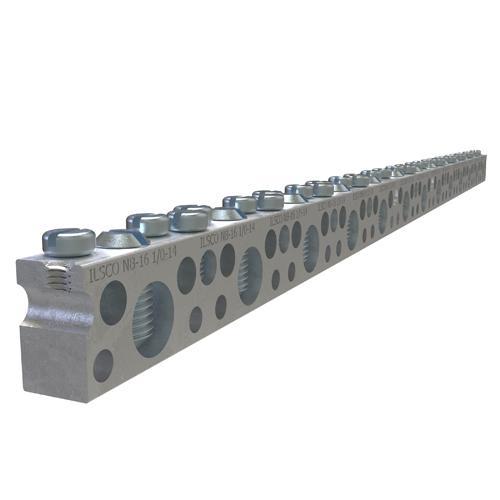

Image provided may only be a representation of
final product and may include optional equipment
NBCE-1336-2
ILSCO NBCE-1336-2 ILSCO ClearChoice Neutral Bar
Part Number # NBCE-1336-2
SKU # 2372105
Ilsco NBCE-1336-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | NBCE-1336-2 |
| SKU #: | 2372105 |
| Cable Tap: | 14 to 6, 14 to 6 AWG |
| Finish: | Electro Tin Plated |
| Mounting Hole Quantity: | 2 |
| Tap Quantity: | 49 |
| Type: | Type NBCE |
| Connection type: | Screw |
| Country of origin: | MX |
| Material: | Copper Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669005899 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO NBCE-1336-2 ILSCO ClearChoice Neutral Bar
Brand: Ilsco
Part Number: NBCE-1336-2
ILSCO ClearChoice Neutral Bar, Type NBCE, 3/8 in Bar Width, 15.158 in Bar Length, 0.62 in Bar Height, 600 VAC, Screw Connection, 14 to 6 AWG Cable Tap, 14 to 1/0 AWG Cable Main, 49 Tap Quantity, 2 Mounting Hole Quantity, Copper Alloy, Electro Tin Plated
Additional Description: ILSC-NBCE-1336-2 CU MEC (13)1/0-14 (36)6-14 (2) MTG T UR CSA UR CSA UR C
Catalog Description: Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 13 Large Ports, 36 Small Ports, 2 Holes, #10 Bolt, UL, CSA
NBCE-1336-2 Application
For use with copper conductorNBCE-1336-2 Item Features
- Manufactured from high strength copper alloy
- Electro tin plated for low contact resistance
- Low contact resistance
- Application versatility
- Ensures reliability
NBCE-1336-2 Standards
UL Listed|CSA File No. LR 2601|UL Recognized|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2372105Part Number #NBCE-1336-2UNSPSC39121408UPC00783669005899
