PB2-750-2N

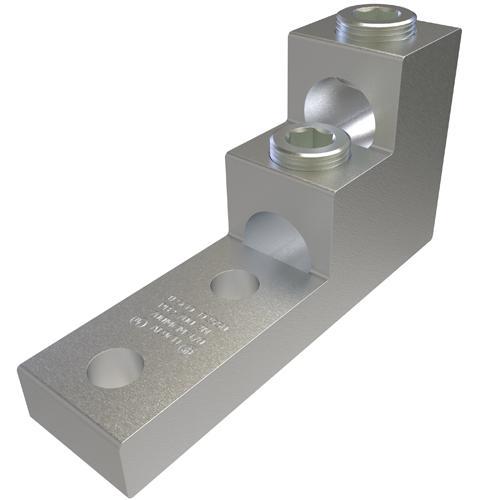

ILSCO PB2-750-2N ILSCO ClearChoice Panelboard Stack Lug
Part Number # PB2-750-2N
SKU # 2282992
Ilsco PB2-750-2N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PB2-750-2N |
| SKU #: | 2282992 |
| Electrical Ratings: | 2000 VAC |
| Finish: | Electro-Plated Tin |
| Suitable For Use With: | Aluminum or Copper Conductor |
| Type: | Type PB Dual Rated |
| Country of origin: | MX |
| Height: | 3 in |
| Length: | 5-11/16 in |
| Material: | Aluminum |
| Width: | 1-9/16 in |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669195415 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PB2-750-2N ILSCO ClearChoice Panelboard Stack Lug
Brand: Ilsco
Part Number: PB2-750-2N
ILSCO ClearChoice Panelboard Stack Lug, Type PB Dual Rated, 1/0 AWG to 750 kcmil Conductor, 1/2 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 1-3/4 in Hole Spacing, 2 Port, 1/2 in Hex, 5-11/16 in Length, 1-9/16 in Width, 3 in Height, Aluminum, Electro-Plated Tin
Additional Description: ILSC-PB2-750-2N AL MEC 750-1/0 13/32-1 3/8 T UL 2 HOLE RAISED Hole Raised Hole R
Catalog Description: Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
PB2-750-2N Application
Terminating Connector ApplicationsPB2-750-2N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 2-11/32 in L x 1-11/16 in W x 3/4 in THK straight tongue
- 90 deg C temperature rating
- 2-studs
PB2-750-2N Standards
CSA File No. LR29601|UL 486A-B|UL 453G|UL File No. E6207|ECCN EAR99SKU #2282992Part Number #PB2-750-2NUNSPSC39121408UPC00783669195415
