PBT-250

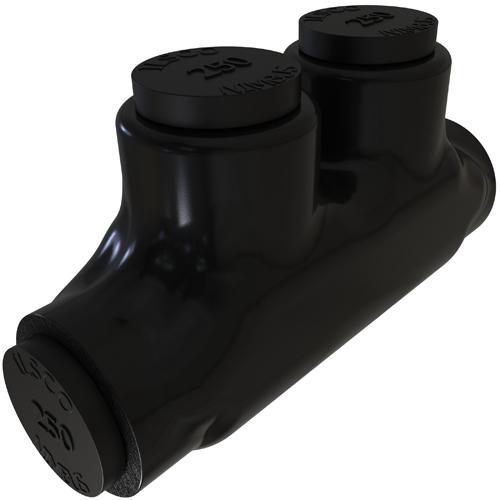

ILSCO PBT-250 ILSCO NIMBUS Splicer/Reducer Connector
Part Number # PBT-250
SKU # 2218764
$281.24 / 4Each
Typical price:$310.52 / Each
Ilsco PBT-250 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBT-250 |
| SKU #: | 2218764 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 4.28 in L x 1.062 in W x 2.04 in H |
| Specifications: | 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PBT 2-Port 2-Wire Dual Rated Insulated |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669077025 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$281.24 / 4Each
Typical price:$310.52 / Each
Quantity:
- ILSCO NIMBUS Splicer/Reducer Connector, Type PBT 2-Port 2-Wire Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A, -45 to 90 deg C, Aluminum, 4.28 in L x 1.062 in W x 2.04 in H
PBT-250 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
PBT-250 Standards
CSA File No. LR-29601|UL 486A-B/UL 453G/UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2218764Part Number #PBT-250UNSPSC39121408UPC00783669077025
