Part Number # PBTD-2-4
SKU # 2314646
Image Disclaimers Message
PBTD-2-4

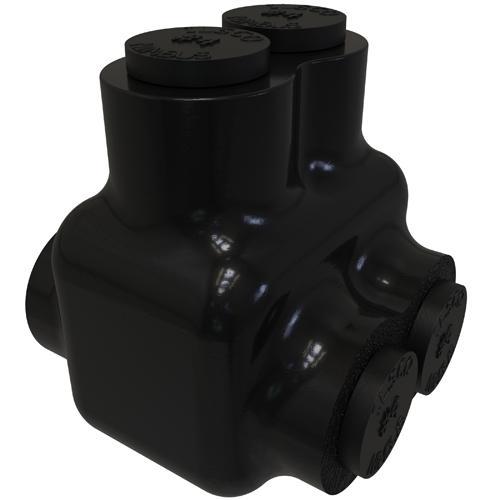

ILSCO PBTD-2-4 ILSCO NIMBUS Multi-Tap Connector
Part Number # PBTD-2-4
SKU # 2314646
$412.20 / 12Each
Typical price:$520.13 / Each
Ilsco PBTD-2-4 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTD-2-4 |
| SKU #: | 2314646 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1.24 in L x 1.25 in W x 1.42 in H |
| Specifications: | 14 to 4 AWG Wire, 1/8 in Hex, 95 A |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669077100 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$412.20 / 12Each
Typical price:$520.13 / Each
Quantity:
- ILSCO NIMBUS Multi-Tap Connector, Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, 14 to 4 AWG Wire, 1/8 in Hex, 95 A, -45 to 90 deg C, Aluminum, 1.24 in L x 1.25 in W x 1.42 in H
PBTD-2-4 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Patented screw design
- Incoming and outgoing conductors must be staggered
PBTD-2-4 Standards
CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2314646Part Number #PBTD-2-4UNSPSC39121408UPC00783669077100
