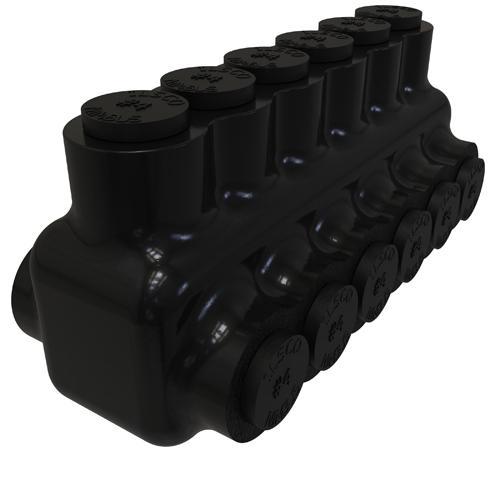

ILSCO PBTD-6-4 ILSCO NIMBUS Multi-Tap Connector
Image Disclaimers Message
ILSCO PBTD-6-4 ILSCO NIMBUS Multi-Tap Connector
ILSCO PBTD-6-4 ILSCO NIMBUS Multi-Tap Connector
Part #:PBTD-6-4
SKU #: 2205628
Key Features
Part #:PBTD-6-4
SKU #: 2205628
Brand: Ilsco
Conductor Type: Aluminum/Copper
Dimensions: 3.07 in L x 1.24 in W x 1.42 in H
Specifications: 14 to 4 AWG Wire, 1/8 in Hex, 95 A
Temperature Rating (Degrees F): -45 to 90, -45 to 90 deg C
Type: Type PBTD 2-Sided Entry 6-Port Dual Rated Insulated
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Patented screw design
- Incoming and outgoing conductors must be staggered
ILSCO PBTD-6-4 ILSCO NIMBUS Multi-Tap Connector
ILSCO NIMBUS Multi-Tap Connector, Type PBTD 2-Sided Entry 6-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 14 to 4 AWG Wire, 1/8 in Hex, 95 A, -45 to 90 deg C, Aluminum, 3.07 in L x 1.24 in W x 1.42 in H
Additional Description: ILSC-PBTD-6-4 INSUL AL MECH (6) 4-14 DUAL T UL CSA
Catalog Description: Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 6 Ports, Dual Sided Entry, Tin Plated, UL, CSA
