Part Number # PBTI-5-1/0-F-BLK
SKU # 2402105
PBTI-5-1/0-F-BLK

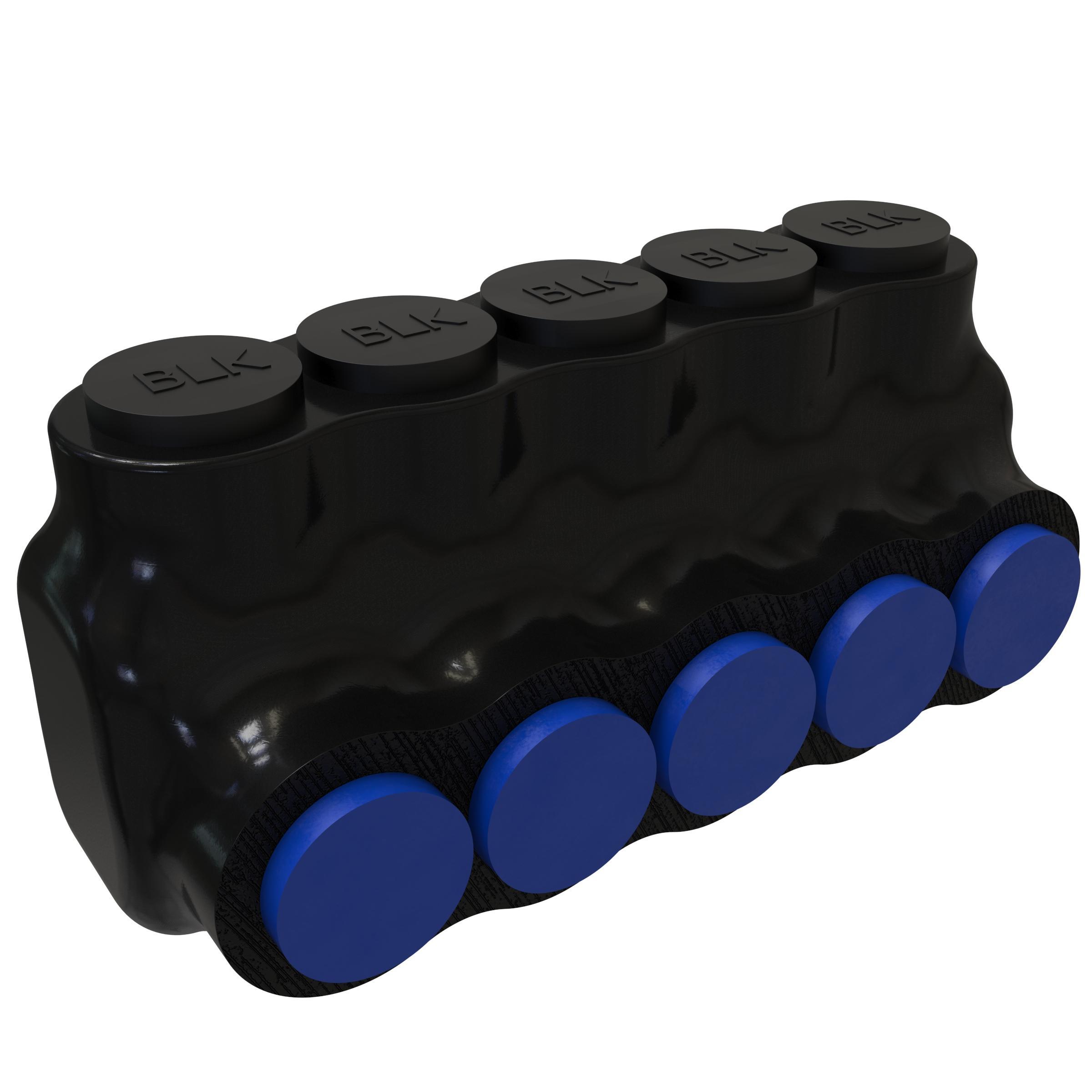

ILSCO PBTI-5-1/0-F-BLK Nimbus4Flex Insulated Multi-Tap Connector
Part Number # PBTI-5-1/0-F-BLK
SKU # 2402105
Ilsco PBTI-5-1/0-F-BLK Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTI-5-1/0-F-BLK |
| SKU #: | 2402105 |
| Conductor Size: | 14 to 1/0 AWG |
| Conductor Type: | Aluminum/Flex Copper |
| Dimensions: | 3.498 in L x 1.625 in W x 1.627 in H |
| Finish: | Black |
| Specifications: | 3/16 in Hex |
| Temperature Rating (Degrees F): | -45 to 90 deg C |
| Type: | 5-Port Type PBTI |
| Country of origin: | MX |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669741568 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PBTI-5-1/0-F-BLK Nimbus4Flex Insulated Multi-Tap Connector
Brand: Ilsco
Part Number: PBTI-5-1/0-F-BLK
ILSCO NIMBUS 4FLEX Insulated Multi-Tap Connector, 5-Port Type PBTI, Aluminum/Flex Copper Conductor, 14 to 1/0 AWG Conductor, 600 VAC, 3/16 in Hex, -45 to 90 deg C, Black, 3.498 in L x 1.625 in W x 1.627 in H
Additional Description: ILSC-PBTI-5-1/0-F-BLK (N) INS (5) 1-14 H,I,K,DLO 2-14 M BLK CAP T UL CSA NON-CANCELABLE, NON-RETURNABLE CAP T U
Catalog Description: Nimbus4Flex Motors Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, Flex 1-14 H,I,K,DLO 2-14 M, 5 Ports, Black Cap, Tin Plated, UL, CSA
PBTI-5-1/0-F-BLK Item Features
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Cold temperature rated to -45 deg C for application variability
- High dielectric strength plastisol is chemical resistant
- Removable plugs protect wire way from contamination
- Pre-filled with De-ox oxide inhibiting compound prevents oxides from forming
- Flexible NIMBUS caps are reflex blue for easy identification in the field
- Dual rated for copper, copper flex or aluminum conductor
- Simplifies motor wire up
PBTI-5-1/0-F-BLK Standards
UL 486A/B/453G File No. E6207|CSA File No. LR29601|NEC 310-316|PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2402105Part Number #PBTI-5-1/0-F-BLKUNSPSC39121408UPC00783669741568
Image provided may only be a representation of final product and may include optional equipment
