Brand: Ilsco

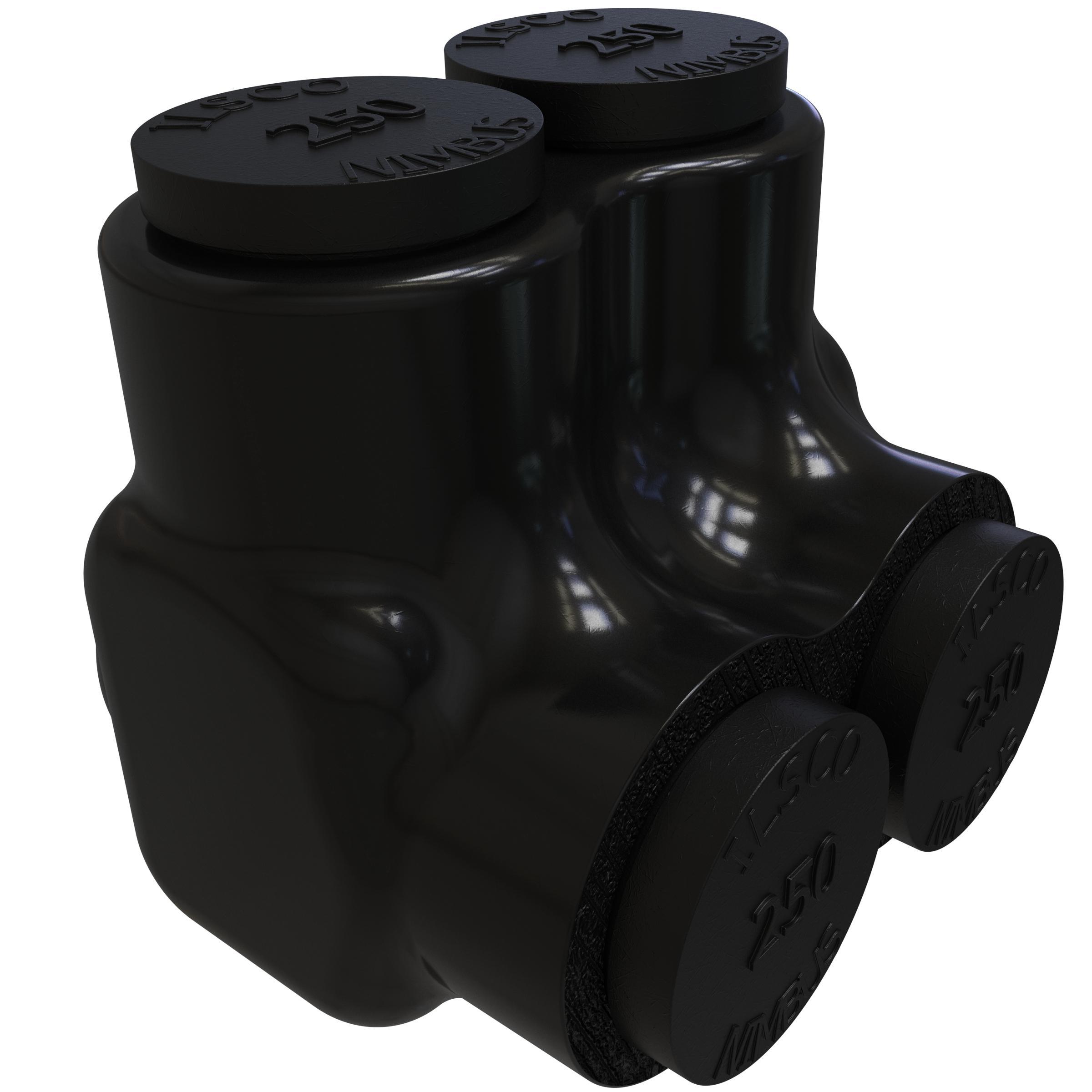

ILSCO PBTS-2-250 ILSCO NIMBUS Multi-Tap Connector
Part Number # PBTS-2-250
SKU # 2244388
$371.88 / 6Each
Ilsco PBTS-2-250 Key Features
Brand: Ilsco
Part Number # PBTS-2-250
SKU #2244388
Conductor Type: Aluminum/Copper
Dimensions: 2.17 in L x 1.91 in W x 2.17 in H
Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A
Temperature Rating (Degrees F): -45 to 90, -45 to 90 deg C
Type: Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated
Voltage Rating: 600, 600 VAC
Country of origin: MX
Material: Aluminum
Manufacturer Name: ECM Industries
UNSPSC: 39121408
UPC: 00783669079760
$371.88 / 6Each
- ILSCO NIMBUS Multi-Tap Connector, Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A, -45 to 90 deg C, Aluminum, 2.17 in L x 1.91 in W x 2.17 in H
PBTS-2-250 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical resistant
- Incoming and outgoing conductors must be staggered
PBTS-2-250 Standards
CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2244388Part Number #PBTS-2-250UNSPSC39121408UPC00783669079760
