Part Number # PBTS-2-3/0-F
SKU # 2248963
Image Disclaimers Message
PBTS-2-3/0-F

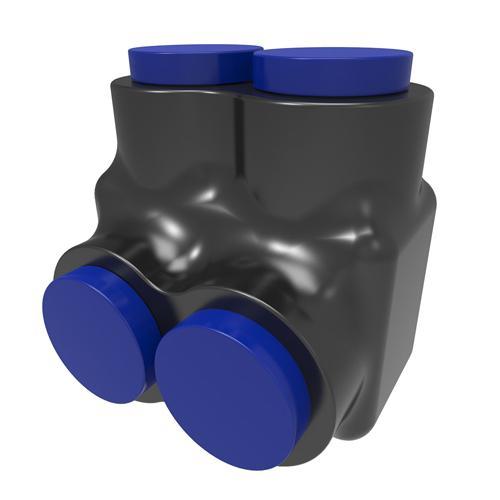

ILSCO PBTS-2-3/0-F ILSCO NIMBUS4FLEX Flexible Multi-Tap Connector
Part Number # PBTS-2-3/0-F
SKU # 2248963
Ilsco PBTS-2-3/0-F Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTS-2-3/0-F |
| SKU #: | 2248963 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1.89 in L x 1.58 in W x 1.86 in H |
| Specifications: | 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PBTF 1-Side Entry 2-Port Dual Rated Insulated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669712391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PBTS-2-3/0-F ILSCO NIMBUS4FLEX Flexible Multi-Tap Connector
Brand: Ilsco
Part Number: PBTS-2-3/0-F
ILSCO NIMBUS 4FLEX Flexible Multi-Tap Connector, Type PBTF 1-Side Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, Specifications: 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A, -45 to 90 deg C, Aluminum, 1.89 in L x 1.58 in W x 1.86 in H Dimensions
Additional Description: ILSC-PBTS-2-3/0-F INS (2) 3/0-6,2/0-6FX,1-6M T U L CSA SINGLE ENTRY SINGLE ENTRY SING
Catalog Description: Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 3/0-6, Flex 2/0-6 H,I,K,DLO 1-6 M, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA
PBTS-2-3/0-F Item Features
- Broad wire range 14 AWG to 350 kcmil
- High dielectric strength plastisol is chemical-resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical and vibration-resistant
- 6 to 2/0 AWG H, I, K, DLO 6 to 1 AWG M conductor
- Improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Reusable patented screw design doesnt require wire sleeve
- Flexible NIMBUS caps are reflex blue for easy identification in the field
- Incoming and outgoing conductors must be staggered
PBTS-2-3/0-F Standards
CSA File No. LR29601|UL File No. E6207/453G/486A/B|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2248963Part Number #PBTS-2-3/0-FUNSPSC39121408UPC00783669712391
