Part Number # PBTS-2-3/0
SKU # 2314282
Image Disclaimers Message
Brand: Ilsco
PBTS-2-3/0

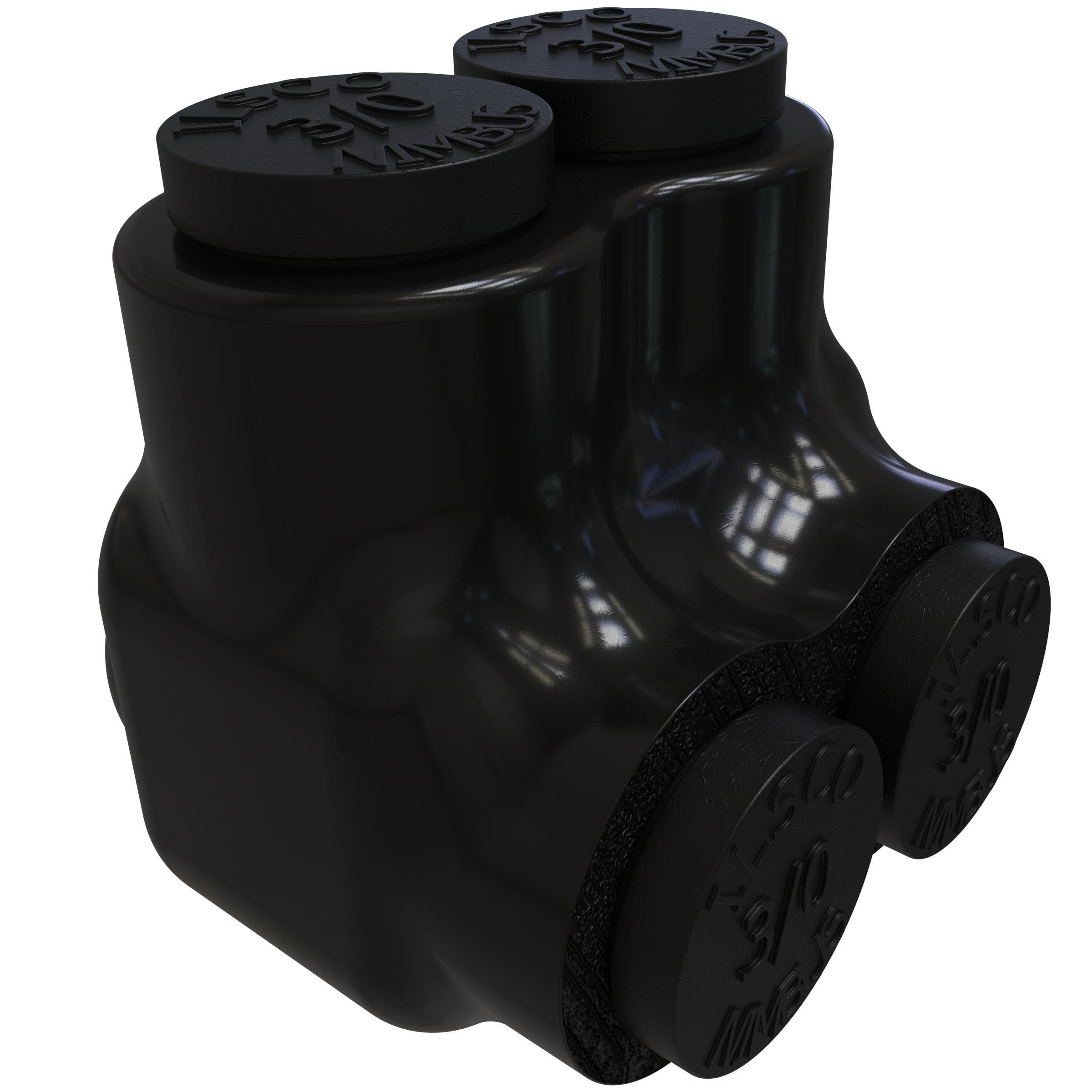

ILSCO PBTS-2-3/0 ILSCO NIMBUS Multi-Tap Connector
Part Number # PBTS-2-3/0
SKU # 2314282
$527.88 / 12Each
Typical price:$666.14 / Each
Ilsco PBTS-2-3/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTS-2-3/0 |
| SKU #: | 2314282 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1.89 in L x 1.58 in W x 1.86 in H |
| Specifications: | 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669079500 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$527.88 / 12Each
Typical price:$666.14 / Each
Quantity:
ILSCO PBTS-2-3/0 ILSCO NIMBUS Multi-Tap Connector
Brand: Ilsco
Part Number: PBTS-2-3/0
ILSCO NIMBUS Multi-Tap Connector, Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A, -45 to 90 deg C, Aluminum, 1.89 in L x 1.58 in W x 1.86 in H
Additional Description: ILSC-PBTS-2-3/0 INSUL AL MECH (2) 3/0-6 SGL T UL CSA
Catalog Description: Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA
PBTS-2-3/0 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical resistant
- Incoming and outgoing conductors must be staggered
PBTS-2-3/0 Standards
CSA File No. LR-29601|UL 486A-B/UL 453G/UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2314282Part Number #PBTS-2-3/0UNSPSC39121408UPC00783669079500
