Part Number # PBTS-5-1/0
SKU # 2384482
Image Disclaimers Message
Brand: Ilsco
PBTS-5-1/0

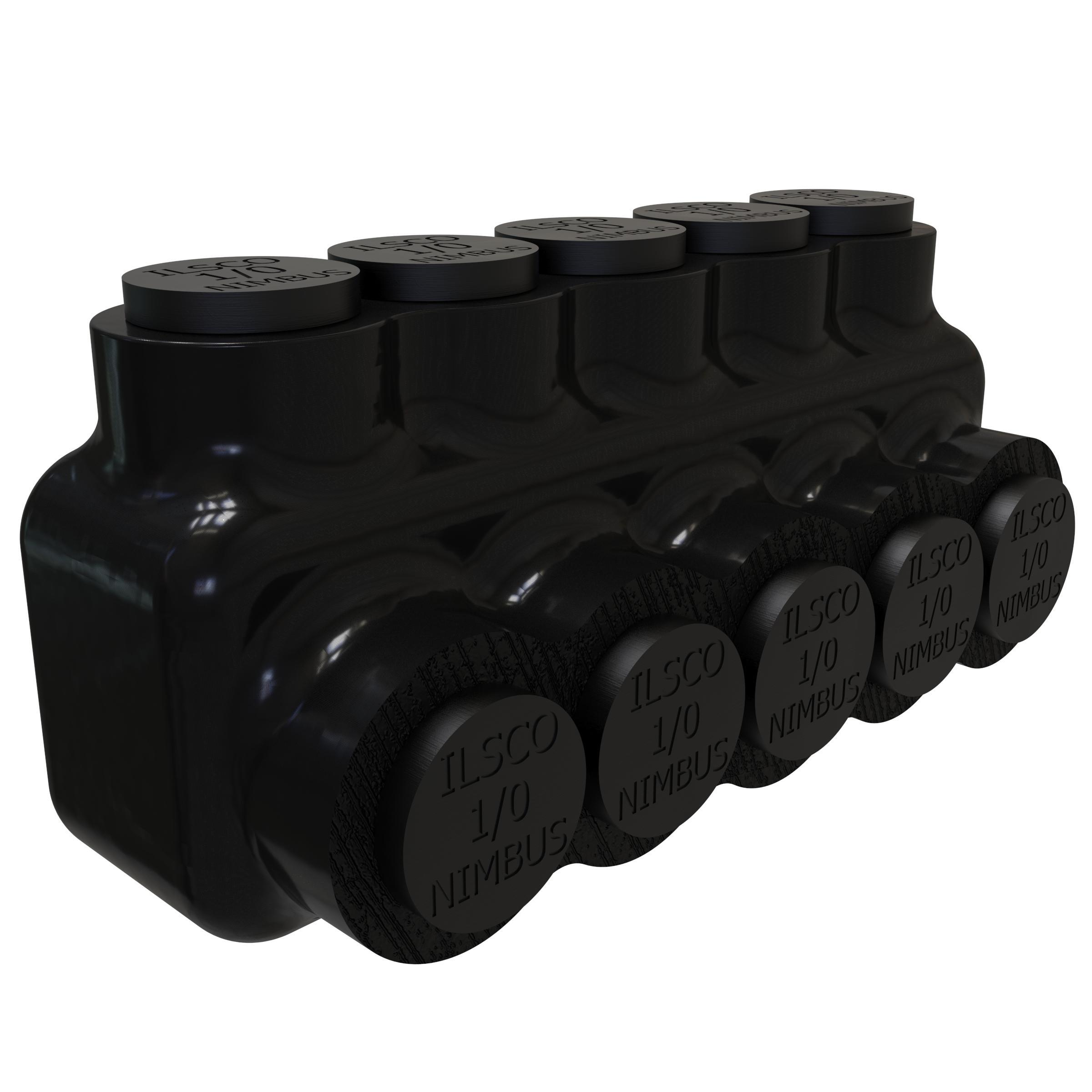

ILSCO PBTS-5-1/0 ILSCO NIMBUS Multi-Tap Connector
Part Number # PBTS-5-1/0
SKU # 2384482
$370.68 / 6Each
Typical price:$467.74 / Each
Ilsco PBTS-5-1/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTS-5-1/0 |
| SKU #: | 2384482 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 3.54 in L x 1.53 in W x 1.63 in H |
| Specifications: | 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PBTS 1-Sided Entry 5-Port Dual Rated Insulated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669079302 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$370.68 / 6Each
Typical price:$467.74 / Each
Quantity:
ILSCO PBTS-5-1/0 ILSCO NIMBUS Multi-Tap Connector
Brand: Ilsco
Part Number: PBTS-5-1/0
ILSCO NIMBUS Multi-Tap Connector, Type PBTS 1-Sided Entry 5-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A, -45 to 90 deg C, Aluminum, 3.54 in L x 1.53 in W x 1.63 in H
Additional Description: ILSC-PBTS-5-1/0 INSUL AL MECH (5) 1/0-14 SGL T UL CSA
Catalog Description: Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 5 Ports, Single Sided Entry, Tin Plated, UL, CSA
PBTS-5-1/0 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Flexibility in the field
- Ensures reliability
- Patented screw design
- Entry port closure
- Prevents oxides from forming
- Chemical resistant
- Incoming and outgoing conductors must be staggered
PBTS-5-1/0 Standards
CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2384482Part Number #PBTS-5-1/0UNSPSC39121408UPC00783669079302
