Part Number # PBTT-3-350-F
SKU # 2293680
Image Disclaimers Message
PBTT-3-350-F

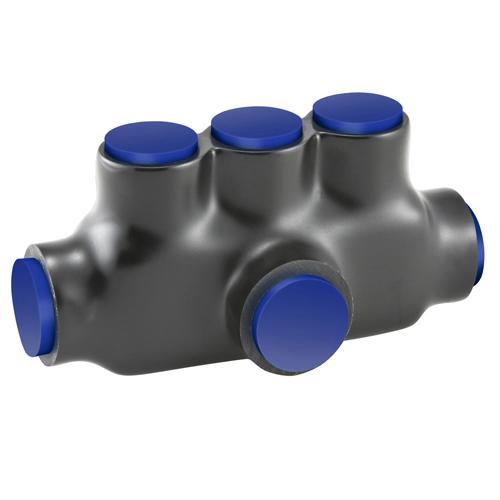

ILSCO PBTT-3-350-F ILSCO NIMBUS4FLEX Insulated Multi-Tap Connector
Part Number # PBTT-3-350-F
SKU # 2293680
Ilsco PBTT-3-350-F Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTT-3-350-F |
| SKU #: | 2293680 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Aluminum/Flex Copper |
| Dimensions: | 3.375 in L x 2.031 in W x 2.43 in H |
| Finish: | Black |
| Specifications: | 350 A, 5/16 in Hex |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | 3-Port Type PBTF Single Sided Entry Blank Tee |
| Country of origin: | MX |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669721508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PBTT-3-350-F ILSCO NIMBUS4FLEX Insulated Multi-Tap Connector
Brand: Ilsco
Part Number: PBTT-3-350-F
ILSCO NIMBUS 4FLEX Insulated Multi-Tap Connector, 3-Port Type PBTF Single Sided Entry Blank Tee, Aluminum/Flex Copper Conductor, 6 AWG to 350 kcmil Conductor, 600 VAC, 350 A, 5/16 in Hex, -45 to 90 deg C, Black, 3.375 in L x 2.031 in W x 2.43 in H
Additional Description: ILSC-PBTT-3-350-F INS T(3)350-6,250FX,4/0M,262DL O T UL CSA
Catalog Description: Nimbus4Flex Shapes Insulated Aluminum Multi-Tap Connector, Conductor Range 350-6, Flex 250-6 H,I,K 4/0-4 M 262.2-4 DLO, 3 Ports, T shaped, Tin Plated, UL, CSA
PBTT-3-350-F Item Features
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Dual rated for copper, copper flex or aluminum conductor
- Cold temperature rated to -45 deg C
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Flexible NIMBUS caps are reflex blue for easy identification in the field
- Pre-filled with De-ox
PBTT-3-350-F Standards
UL 486A/B|453G File No. E6207|CSA File No. LR29601|NEC 310-316|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2293680Part Number #PBTT-3-350-FUNSPSC39121408UPC00783669721508
