Brand: Ilsco
PCT-2-2/0

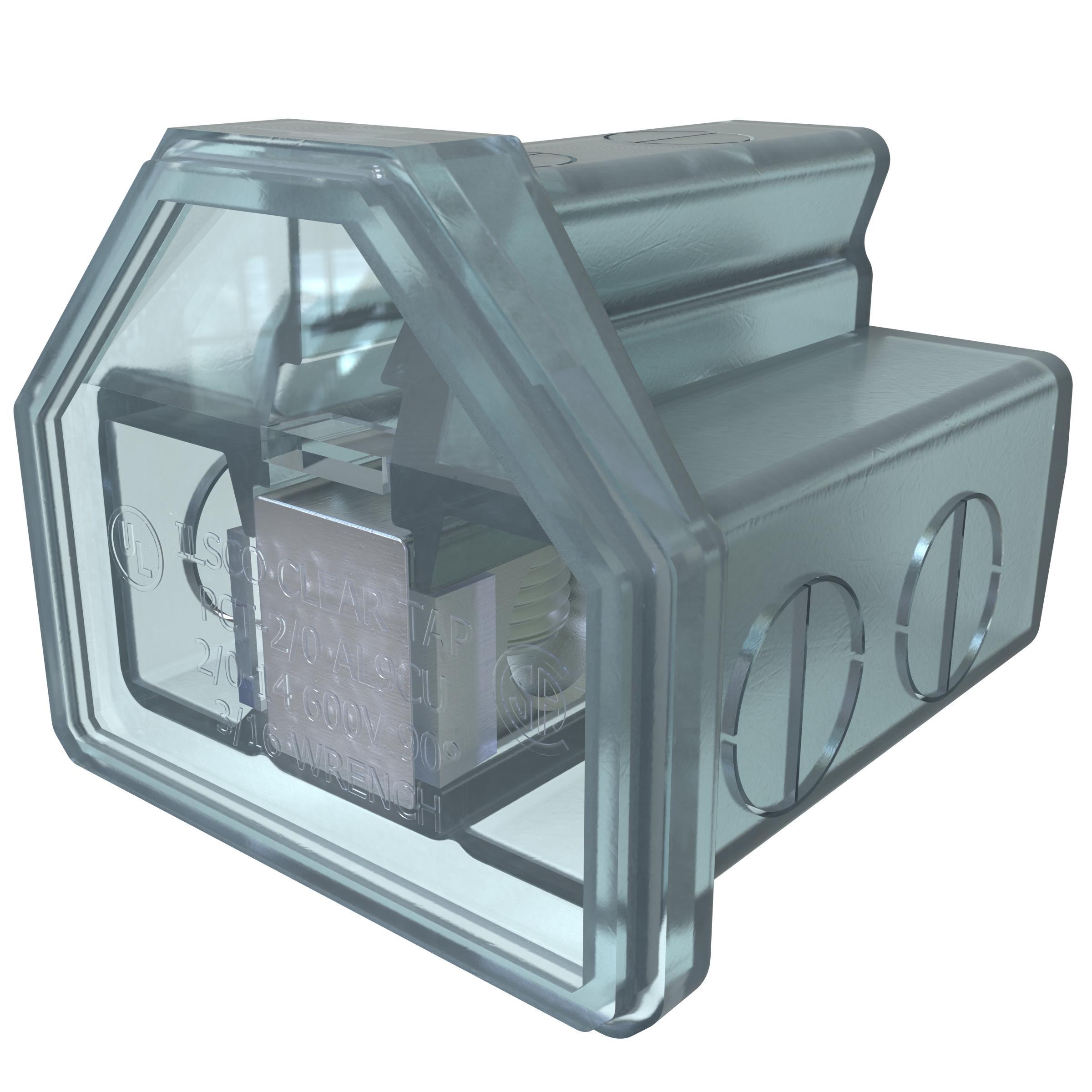

ILSCO PCT-2-2/0 ILSCO ClearTap Multi-Tap Connector
Part Number # PCT-2-2/0
SKU # 2236075
$347.76 / 6Each
Ilsco PCT-2-2/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PCT-2-2/0 |
| SKU #: | 2236075 |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 2.61 in L x 2.3 in W x 1.97 in H |
| Specifications: | 14 to 2/0 AWG Wire, 3/16 in Hex |
| Temperature Rating (Degrees F): | -45 to 90, -45 to 90 deg C |
| Type: | Type PCT 2-Port Dual Rated Insulated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669700404 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$347.76 / 6Each
Quantity:
- ILSCO ClearTap Multi-Tap Connector, Type PCT 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, Specifications: 14 to 2/0 AWG Wire, 3/16 in Hex, -45 to 90 deg C, Aluminum, 2.61 in L x 2.3 in W x 1.97 in H Dimensions
PCT-2-2/0 Item Features
- Broad wire range 14 AWG to 800 kcmil
- ClearTap is fully insulated yet allows visual inspection
- Transparent, flexible insulating cover
- Captive pressure screws
- Self closing openings
- Access from both sides of connector
- Incoming and outgoing conductors must be staggered
- Ensures reliability
- No taping and fully insulated yet allows visual inspection
- Provides greater versatility
- Reduces inventory requirements
- No wasted time finding screws
- No lost or loose caps and plugs
PCT-2-2/0 Standards
CSA File No. LR29601|UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2236075Part Number #PCT-2-2/0UNSPSC39121408UPC00783669700404
