Part Number # PDB-11-350-3
SKU # 19444
Image Disclaimers Message
PDB-11-350-3

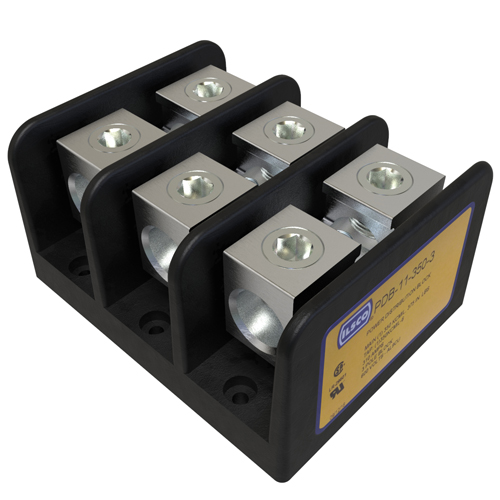

ILSCO PDB-11-350-3 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-11-350-3
SKU # 19444
$188.38 / Each
Typical price:$208.00 / Each
Ilsco PDB-11-350-3 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PDB-11-350-3 |
| SKU #: | 19444 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 5 in L x 4 in W x 2-5/8 in H |
| Finish: | Electro-Plated Tin |
| Number of Poles: | 3 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Type PDB Mechanical Medium |
| Wire Size: | 6 AWG to 350 kcmil |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669710830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.38 / Each
Typical price:$208.00 / Each
Quantity:
- ILSCO ClearChoice Power Distribution Block, Type PDB Mechanical Medium, 600 V AC, 310 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 5 in L x 4 in W x 2-5/8 in H Dimensions
PDB-11-350-3 Application
Tap Connector ApplicationsPDB-11-350-3 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/8 in hex secondary
- 90 deg C temperature rating
- (1) box lug primary, (1) box lug secondary
- 6 AWG to 350 kcmil primary and secondary wire
- Valox insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-11-350-3 Standards
CSA File No. LR29601|UL 1059|UL 1953|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #19444Part Number #PDB-11-350-3UNSPSC39121408UPC00783669710830
