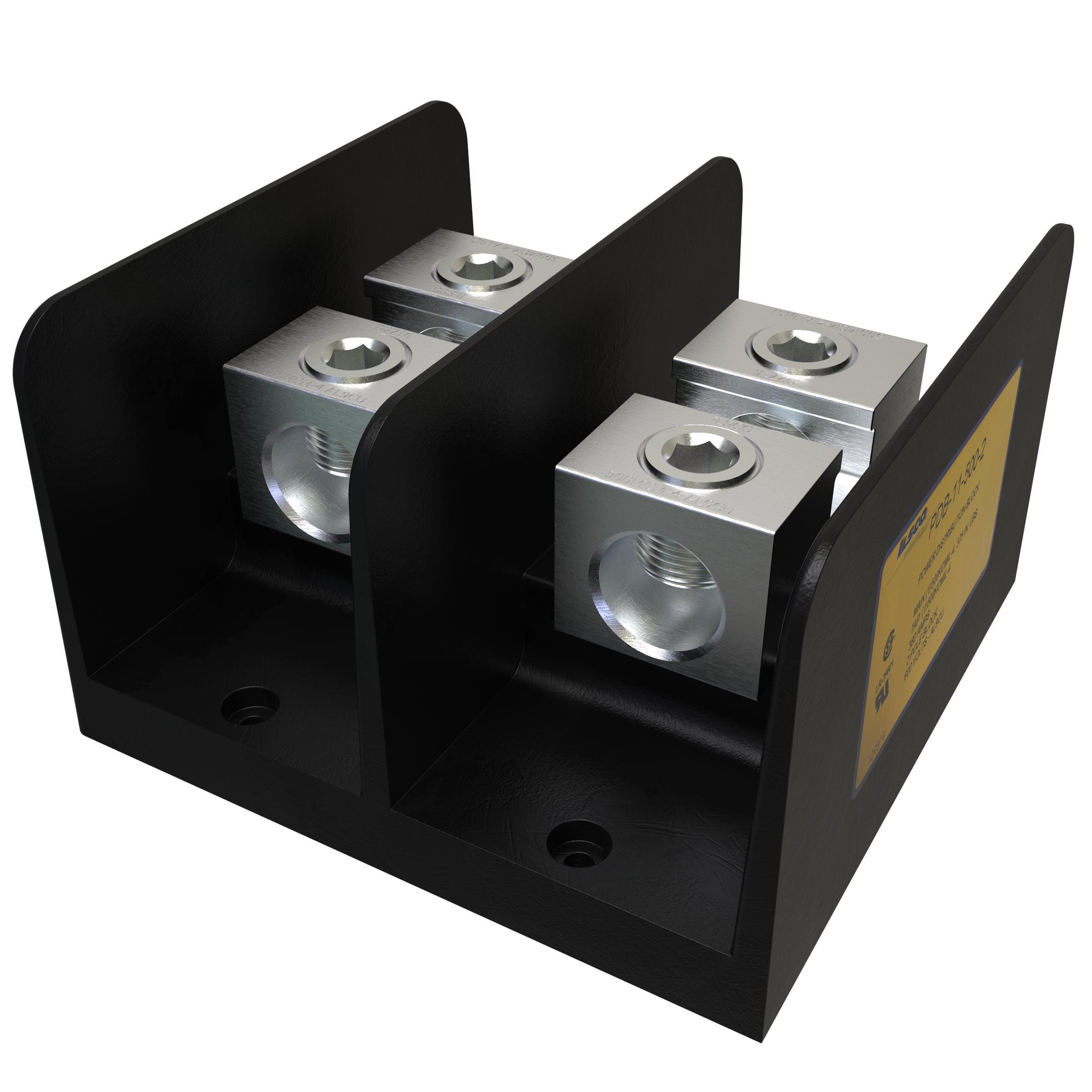

ILSCO PDB-11-500-2 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-11-500-2
SKU # 2235336
$223.70 / Each
Ilsco PDB-11-500-2 Key Features
Brand: Ilsco
Part Number # PDB-11-500-2
SKU #2235336
Amperage Rating: 380, 380 A
Dimensions: 5-11/16 in L x 5-1/2 in W x 3-1/2 in H
Finish: Electro-Plated Tin
Number of Poles: 2
Short Circuit Current Rating (kA): 10, 10 kA
Type: Type PDB Large Mechanical
Voltage Rating: 600, 600 VAC
Wire Size: 4 AWG to 500 kcmil
Color: Black
Country of origin: MX
Material: Aluminum Alloy
Manufacturer Name: ECM Industries
UNSPSC: 39121408
UPC: 00783669710878
$223.70 / Each
- ILSCO ClearChoice Power Distribution Block, Type PDB Large Mechanical, 600 VAC, 380 A, 2 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 5-11/16 in L x 5-1/2 in W x 3-1/2 in H Dimensions
PDB-11-500-2 Application
Tap Connector ApplicationsPDB-11-500-2 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- Valox insulating base
- 90 deg C temperature rating
- 3/8 in hex primary, 3/8 in hex secondary
- (1) box lug primary, (1) box lug secondary
- 4 AWG to 350 kcmil primary and secondary wire size
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-11-500-2 Standards
CSA File No. LR29601|UL 1059|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2235336Part Number #PDB-11-500-2UNSPSC39121408UPC00783669710878
