PDB-112-350-3

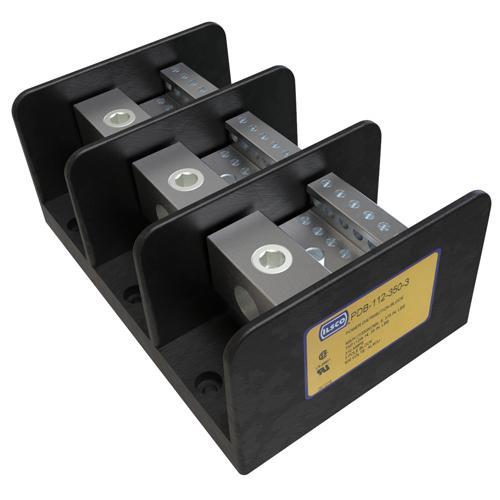

ILSCO PDB-112-350-3 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-112-350-3
SKU # 2243791
$459.57 / Each
Typical price:$507.44 / Each
Ilsco PDB-112-350-3 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PDB-112-350-3 |
| SKU #: | 2243791 |
| Amperage Rating: | 310, 310 A |
| Dimensions: | 8-3/8 in L x 5-1/2 in W x 3-1/2 in H |
| Finish: | Electro-Plated Tin |
| Number of Poles: | 3 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Type PDB Large Mechanical |
| Wire Size: | 6 AWG to 350 kcmil, 14 to 4 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669710595 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$459.57 / Each
Typical price:$507.44 / Each
Quantity:
- ILSCO ClearChoice Power Distribution Block, Type PDB Large Mechanical, 600 V AC, 310 A, 3 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil, 14 to 4 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 8-3/8 in L x 5-1/2 in W x 3-1/2 in H Dimensions
PDB-112-350-3 Application
Tap Connector ApplicationsPDB-112-350-3 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- Valox insulating base
- 90 deg C temperature rating
- 3/16 in hex primary, slot hex secondary
- (1) box lug primary, (12) box lug secondary
- 6 AWG to 350 kcmil primary and 14 to 4 AWG secondary wire
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-112-350-3 Standards
CSA File No. LR29601|UL 1059|UL 1953|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2243791Part Number #PDB-112-350-3UNSPSC39121408UPC00783669710595
