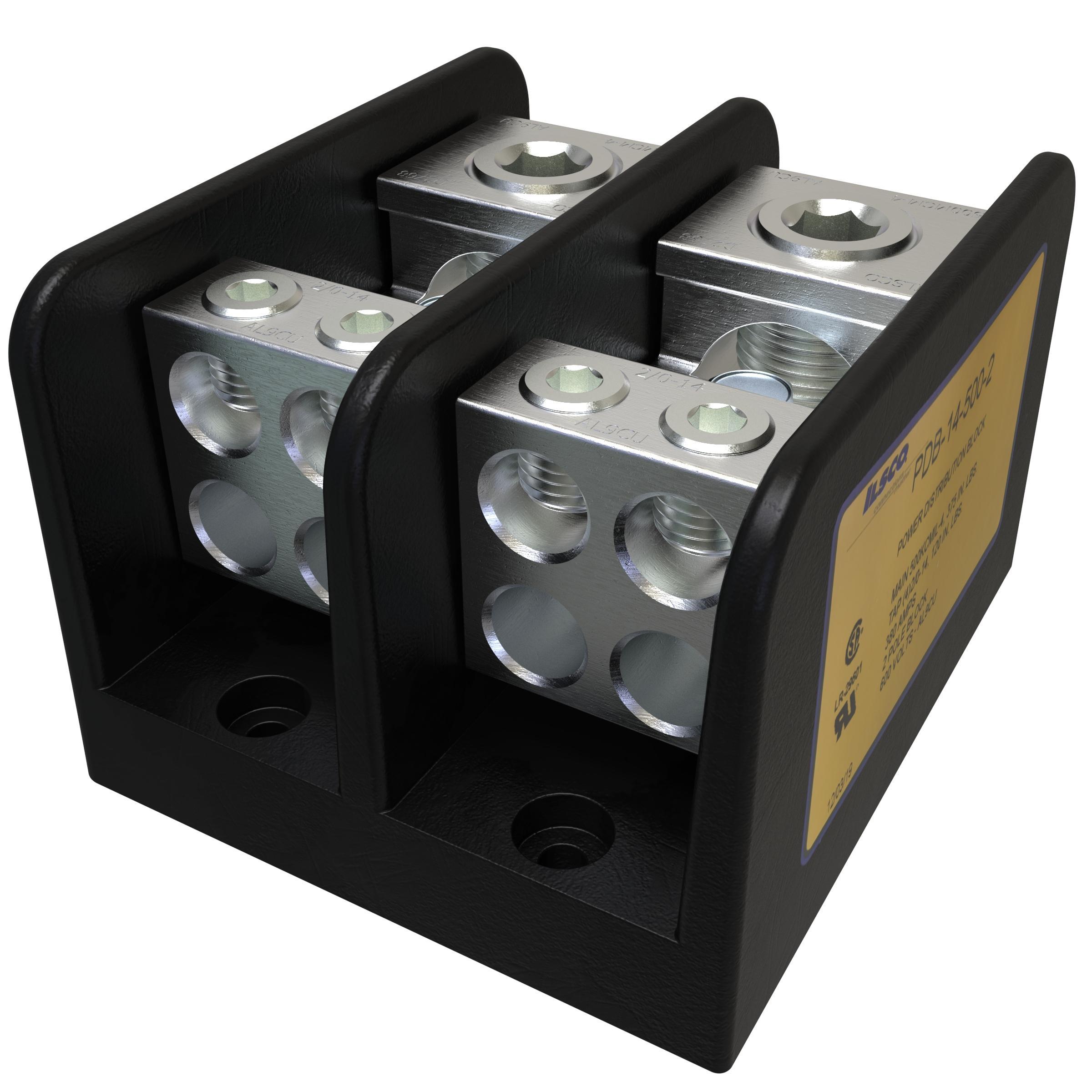

ILSCO PDB-14-500-2 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-14-500-2
SKU # 2261046
PDB-14-500-2
ILSCO PDB-14-500-2 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-14-500-2
SKU # 2261046
Ilsco PDB-14-500-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PDB-14-500-2 |
| SKU #: | 2261046 |
| UNSPSC: | 39121408 |
| UPC: | 00783669711127 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PDB-14-500-2 ILSCO ClearChoice Power Distribution Block
Brand: Ilsco
Part Number: PDB-14-500-2
ILSCO ClearChoice Power Distribution Block, Type PDB Mechanical Medium, 600 V AC, 380 A, 2 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 3-13/32 in L x 4 in W x 2-5/8 in H Dimensions
Additional Description: ILSC-PDB-14-500-2 AL MEC LINE500-4 LOAD(4)2/0-14 TUR CSA 2 POLE LOAD(4)2/0-14TUR CSA CSA
Catalog Description: Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 2/0-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 2 Pole, UL, CSA
PDB-14-500-2 Application
Tap Connector ApplicationsPDB-14-500-2 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/16 in hex secondary
- 90 deg C temperature rating
- (1) box lug primary, (4) box lug secondary
- 4 AWG to 500 kcmil primary and 14 to 2/0 AWG secondary wire size
- Valox insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-14-500-2 Standards
CSA File No. LR29601|UL 1059|UL 1953|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2261046Part Number #PDB-14-500-2UNSPSC39121408UPC00783669711127
Image provided may only be a representation of final product and may include optional equipment
