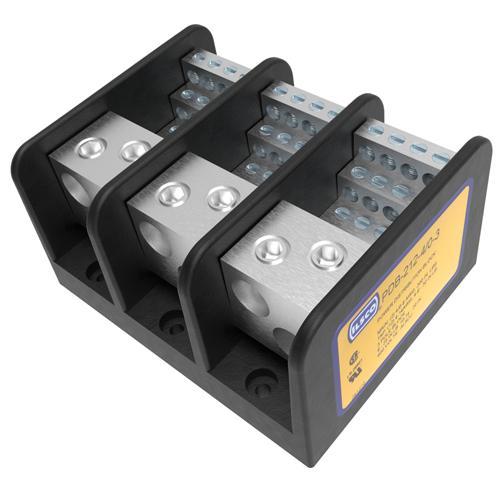

ILSCO PDB-212-4/0-3 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-212-4/0-3
SKU # 2206225
$468.50 / Each
Ilsco PDB-212-4/0-3 Key Features
Brand: Ilsco
Part Number # PDB-212-4/0-3
SKU #2206225
Amperage Rating: 460, 460 A
Dimensions: 5 in L x 4 in W x 2-5/8 in H
Finish: Electro-Plated Tin
Number of Poles: 3
Short Circuit Current Rating (kA): 10, 10 kA
Type: Type PDB Mechanical Medium
Voltage Rating: 600, 600 VAC
Wire Size: 6 to 4/0 AWG, 14 to 4 AWG
Color: Black
Country of origin: MX
Material: Aluminum Alloy
Manufacturer Name: ECM Industries
UNSPSC: 39121408
UPC: 00783669710663
$468.50 / Each
- ILSCO ClearChoice Power Distribution Block, Type PDB Mechanical Medium, 600 VAC, 460 A, 3 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 to 4/0 AWG, 14 to 4 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 5 in L x 4 in W x 2-5/8 in H Dimensions
PDB-212-4/0-3 Application
Tap Connector ApplicationsPDB-212-4/0-3 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, slot hex secondary
- 90 deg C temperature rating
- (2) box lug primary, (12) box lug secondary
- 6 to 4/0 AWG primary and 14 to 4 AWG secondary wire
- Valox insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-212-4/0-3 Standards
CSA File No. LR29601|UL 1059|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2206225Part Number #PDB-212-4/0-3UNSPSC39121408UPC00783669710663
