Part Number # PDB-212-500-2
SKU # 2238510
Image Disclaimers Message
PDB-212-500-2

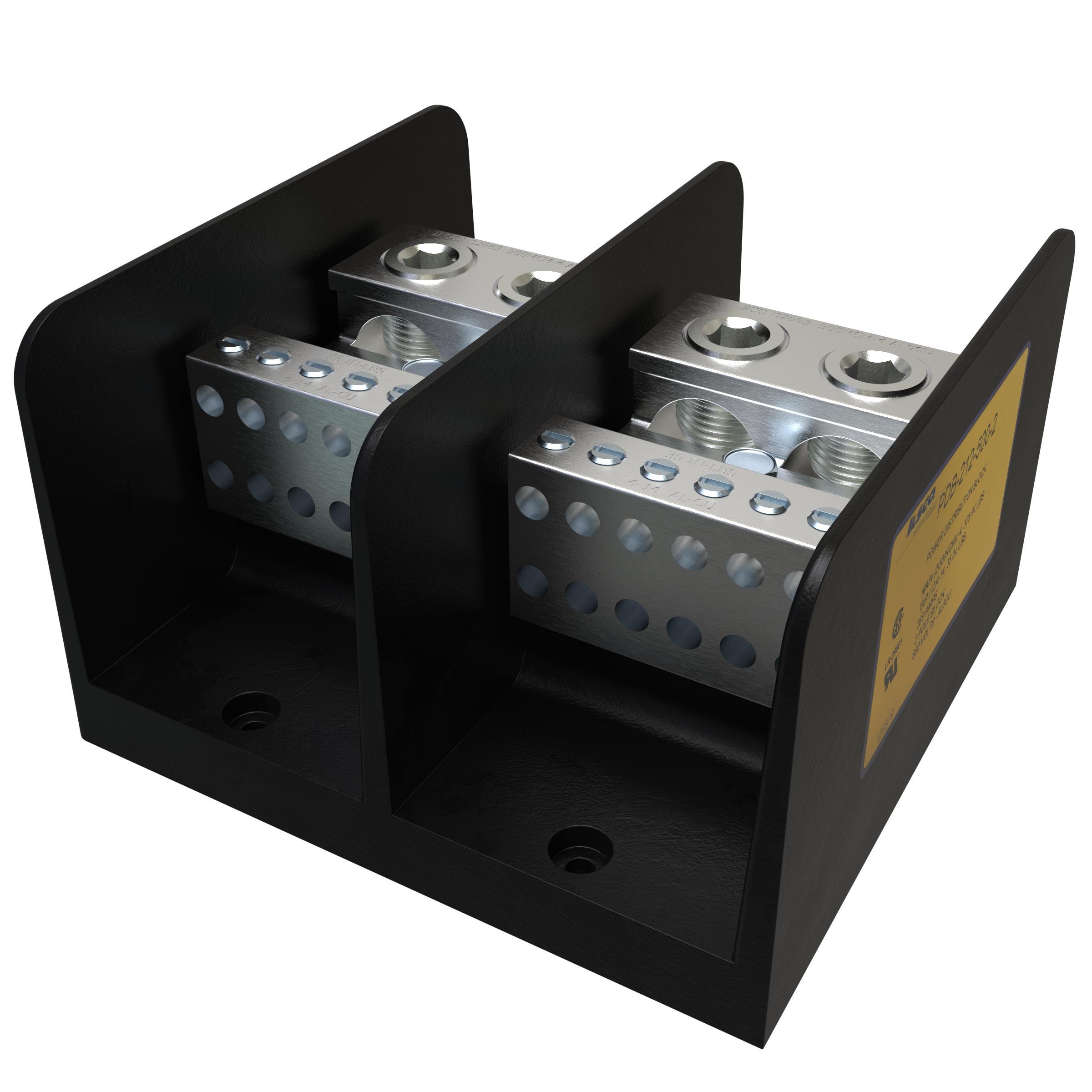

ILSCO PDB-212-500-2 ILSCO ClearChoice Power Distribution Block
Part Number # PDB-212-500-2
SKU # 2238510
$396.41 / Each
Typical price:$437.70 / Each
Ilsco PDB-212-500-2 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PDB-212-500-2 |
| SKU #: | 2238510 |
| Amperage Rating: | 760, 760 A |
| Dimensions: | 5-11/16 in L x 5-1/2 in W x 3-1/2 in H |
| Finish: | Electro-Plated Tin |
| Number of Poles: | 2 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Type PDB Large Mechanical |
| Wire Size: | 4 AWG to 500 kcmil, 14 to 4 AWG |
| Color: | Black |
| Country of origin: | MX |
| Material: | Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669710632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$396.41 / Each
Typical price:$437.70 / Each
Quantity:
- ILSCO ClearChoice Power Distribution Block, Type PDB Large Mechanical, 600 V AC, 760 A, 2 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, 4 AWG to 500 kcmil, 14 to 4 AWG Wire, 10 kA Short Circuit, Aluminum Alloy, Electro-Plated Tin, Black, 5-11/16 in L x 5-1/2 in W x 3-1/2 in H Dimensions
PDB-212-500-2 Application
Tap Connector ApplicationsPDB-212-500-2 Item Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- Valox insulating base
- 90 deg C temperature rating
- 3/16 in hex primary, slot hex secondary
- (2) box lug primary, (12) box lug secondary
- 4 AWG to 500 kcmil primary and 14 to 4 AWG secondary wire size
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
PDB-212-500-2 Standards
CSA File No. LR29601|UL 1059|UL 1953|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2238510Part Number #PDB-212-500-2UNSPSC39121408UPC00783669710632
