Part Number # PDE-11-3/0
SKU # 2219693
PDE-11-3/0
ILSCO PDE-11-3/0 ILSCO ClearChoice Power Distribution Block
Part Number # PDE-11-3/0
SKU # 2219693
Ilsco PDE-11-3/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PDE-11-3/0 |
| SKU #: | 2219693 |
| Dimensions: | 2.71 in L x 3.61 in W x 1.2 in H |
| Fuse Type: | Class J/T/RK1/RK5/G/CC |
| Type: | Type PDE |
| Wire Size: | 14 to 3/0 AWG Line/Load |
| UNSPSC: | 39121408 |
| UPC: | 00783669717778 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO PDE-11-3/0 ILSCO ClearChoice Power Distribution Block
Brand: Ilsco
Part Number: PDE-11-3/0
ILSCO ClearChoice Power Distribution Block, Type PDE, 600 VAC/VDC, 200 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 3/0 AWG Line/Load Wire, Class J/T/RK1/RK5/G/CC Fuse, 100 kA Short Circuit, Aluminum Alloy, Electro-Tin Plated Finish, Gray, 2.71 in L x 3.61 in W x 1.2 in H Dimensions
Additional Description: ILSC-PDE-11-3/0 ALM(P)(1)3/0-14 (1)3/0-14 T UL CE
Catalog Description: Power Distribution Block, High SCCR, Dual Rated, Line Conductor Range 3/0-14, Load Range 3/0-14, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 1 Pole, UL, CSA, Din Rail Mountable
PDE-11-3/0 Application
For use with building code or fine stranded (flexible) conductorsPDE-11-3/0 Item Features
- Enclosed block provides IP20 touch protection
- Manufactured from high strength aluminum
- High short circuit current rating (SCCR) with fuse protection up to 100000 SYM A
- Range taking for reduced inventories and flexibility
- Dual rated for copper and aluminum conductor
- Ensures reliability
- Provides low contact resistance
- Added protection
- (1) 14 to 3/0 AWG line/load conductor range
- (1) 8 to 3/0 AWG line/load high SCCR conductor range
PDE-11-3/0 Standards
CSA File No. LR-29601|UL File No. E84782|UL 1953|CE Certified to IEC 60947-7-1|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2219693Part Number #PDE-11-3/0UNSPSC39121408UPC00783669717778

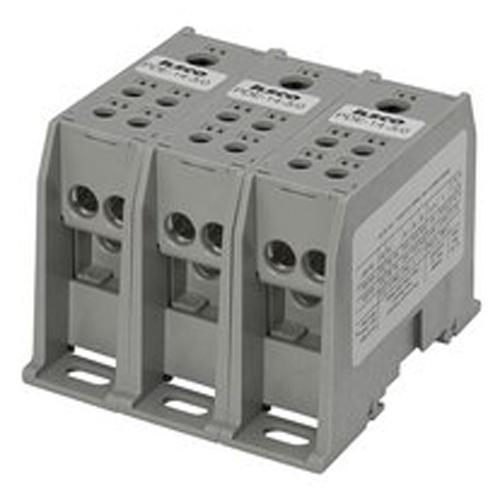

Image provided may only be a representation of final product and may include optional equipment
