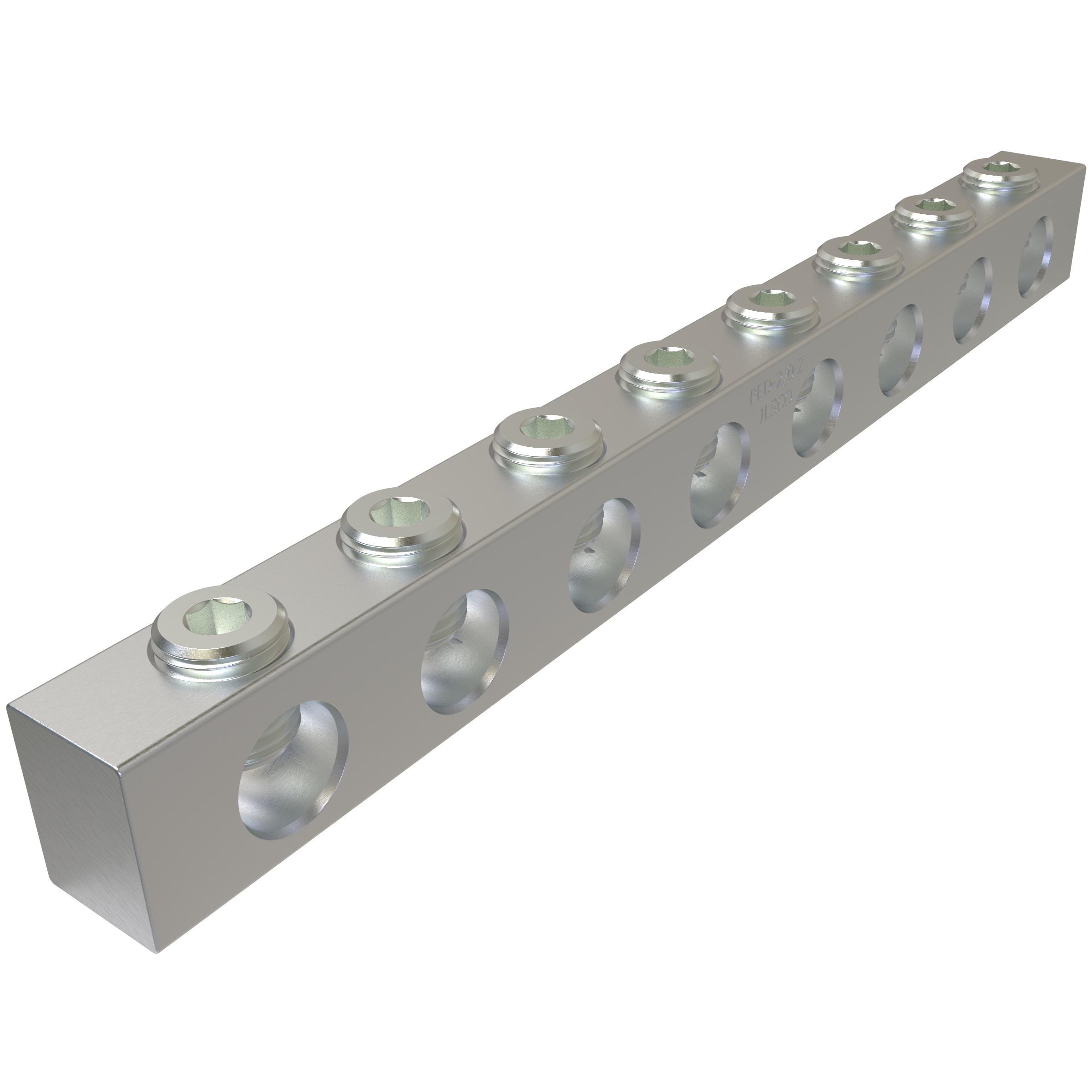

ILSCO PED-8-2/0-Z ILSCO ClearChoice Multi-Tap Connector
Part Number # PED-8-2/0-Z
SKU # 2299649
$128.08 / Each
Ilsco PED-8-2/0-Z Key Features
Brand: Ilsco
Part Number # PED-8-2/0-Z
SKU #2299649
Conductor Type: Aluminum/Copper
Dimensions: 7.15 in L x 0.56 in W x 0.73 in H
Specifications: 14 to 2/0 AWG Wire, 3/16 in Hex
Temperature Rating (Degrees F): 90, 90 deg C
Type: Type PED-Z 8-Port Dual Rated
Voltage Rating: 600/2000, 600/2000 VAC
Country of origin: MX
Material: Aluminum
Manufacturer Name: ECM Industries
UNSPSC: 39121408
UPC: 00783669700060
$128.08 / Each
ILSCO PED-8-2/0-Z ILSCO ClearChoice Multi-Tap Connector
Brand: Ilsco
Part Number: PED-8-2/0-Z
ILSCO ClearChoice Multi-Tap Connector, Type PED-Z 8-Port Dual Rated, Aluminum/Copper Conductor, 600/2000 VAC, 14 to 2/0 AWG Wire, 3/16 in Hex, 90 deg C, Aluminum, 7.15 in L x 0.56 in W x 0.73 in H
Additional Description: ILSC-PED-8-2/0-Z AL MEC 2/0-14 T UL CSA 8 Port
Catalog Description: Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 2/0-14, 8 Ports, UL
PED-8-2/0-Z Item Features
- Manufactured from high strength 6061-T6 aluminum for use with copper or aluminum wire
- Range taking for reduced inventories and flexibility
- Compact design
- Provides multiple conductor installation for a wide range of conductors
- DE-OX inhibitor is recommended for all aluminum terminations
PED-8-2/0-Z Standards
UL 453G|CSA Certified|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2299649Part Number #PED-8-2/0-ZUNSPSC39121408UPC00783669700060
