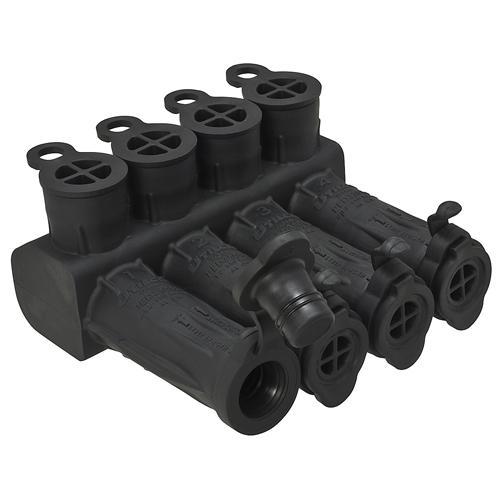

ILSCO PED4-350SS-DB ILSCO SafetySub Multi-Tap Connector
Part Number # PED4-350SS-DB
SKU # 2267295
$274.04 / 2Each
Ilsco PED4-350SS-DB Key Features
Brand: Ilsco
Part Number # PED4-350SS-DB
SKU #2267295
Conductor Type: Aluminum/Copper
Dimensions: 4.8 in L x 4.3 in W x 2.7 in H
Finish: Electro-Plated Tin
Specifications: 10 AWG to 350 kcmil Wire
Temperature Rating (Degrees F): 90, 90 deg C
Type: Type PED-SS 4-Port Dual Rated Watertight
Voltage Rating: 600, 600 VAC
Country of origin: MX
Material: Aluminum
Manufacturer Name: ECM Industries
UNSPSC: 39121408
UPC: 00783669712247
$274.04 / 2Each
- ILSCO SafetySub Multi-Tap Connector, Type PED-SS 4-Port Dual Rated Watertight, Aluminum/Copper Conductor, 600 VAC, 10 AWG to 350 kcmil Wire, 90 deg C, Aluminum, Electro-Plated Tin, 4.8 in L x 4.3 in W x 2.7 in H
PED4-350SS-DB Application
For direct burial in earth and hand holesPED4-350SS-DB Item Features
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
- Pre-filled with DE-OX oxide inhibiting compound
- Re-sealable and tethered wire ports
- No taping required
PED4-350SS-DB Standards
ANSI 119.1/119.4|CSA File No. LR29601|UL File No. E125087/486D/88X4|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2267295Part Number #PED4-350SS-DBUNSPSC39121408UPC00783669712247
