Part Number # PED8-350SS-DB
SKU # 2267297
PED8-350SS-DB

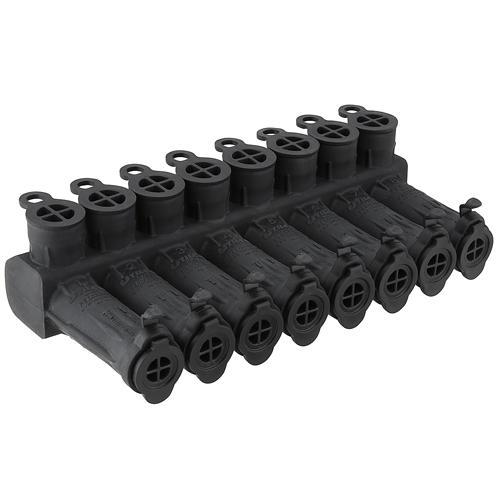

ILSCO PED8-350SS-DB ILSCO SafetySub Multi-Tap Connector
Part Number # PED8-350SS-DB
SKU # 2267297
$646.34 / 2Each
Ilsco PED8-350SS-DB Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PED8-350SS-DB |
| SKU #: | 2267297 |
| Dimensions: | 9.5 in L x 4.3 in W x 2.7 in H |
| Specifications: | 10 AWG to 350 kcmil Wire |
| Type: | Type PED-SS 8-Port Dual Rated Watertight |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669712308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$646.34 / 2Each
Quantity:
- ILSCO SafetySub Multi-Tap Connector, Type PED-SS 8-Port Dual Rated Watertight, Aluminum/Copper Conductor, 600 V AC, 10 AWG to 350 kcmil Wire, 90 deg C, Aluminum, Electro-Plated Tin, 9.5 in L x 4.3 in W x 2.7 in H
PED8-350SS-DB Application
For direct burial in earth and hand holesPED8-350SS-DB Item Features
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
- Pre-filled with DE-OX oxide inhibiting compound
- Re-sealable and tethered wire ports
- No taping required
PED8-350SS-DB Standards
ANSI 119.1/119.4|CSA File No. LR29601|UL File No. E125087/486D/88X4|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2267297Part Number #PED8-350SS-DBUNSPSC39121408UPC00783669712308
Image provided may only be a representation of final product and may include optional equipment
