Part Number # SGB-4
SKU # 2381540
SGB-4

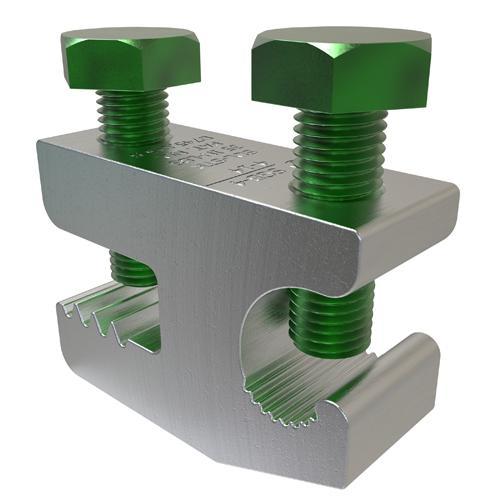

ILSCO SGB-4 ILSCO ClearChoice Grounding Clamp
Part Number # SGB-4
SKU # 2381540
$696.00 / 50Each
Ilsco SGB-4 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SGB-4 |
| SKU #: | 2381540 |
| Dimensions: | 1.375 in L x 0.5 in W x 0.94 in H |
| Type: | Type SGB |
| UNSPSC: | 39121408 |
| UPC: | 00783669960259 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$696.00 / 50Each
Quantity:
ILSCO SGB-4 ILSCO ClearChoice Grounding Clamp
Brand: Ilsco
Part Number: SGB-4
ILSCO ClearChoice Grounding Clamp, Type SGB, 1/4 in Bar Thickness, Solid/Stranded Conductor, 14 to 4 AWG Conductor, Aluminum Alloy, Electro-Plated Tin, Green, 1.375 in L x 0.5 in W x 0.94 in H
Additional Description: ILSC-SGB-4 AL MEC 4-14 SOL-STR T UL CSA
Catalog Description: Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL, CSA
SGB-4 Application
For grounding connectorSGB-4 Item Features
- Universal to identify ground aids in visual inspection
- Stainless steel hardware for corrosion resistance, greater torque and ease of installation
- Serrations in conductor wire way cuts oxidation
- Lay-in feature provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Electro-tin plated provides low contact resistance
- Unique clamp design, no mounting hardware required, re-usable
- 1/4 in max frame thickness to mount to solar panel frames
- Tested to ASTM B117-09 for operating in a salt spray environment
- 7/16 in hex
- Meets ASTM B117-09 resistance to outdoor salt spray
- For grounding and bonding only
SGB-4 Standards
UL 2703|UL 467|UL E34440|ASTM B117-09|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2381540Part Number #SGB-4UNSPSC39121408UPC00783669960259
Image provided may only be a representation of final product and may include optional equipment
