Part Number # SLS-400
SKU # 2288857
SLS-400

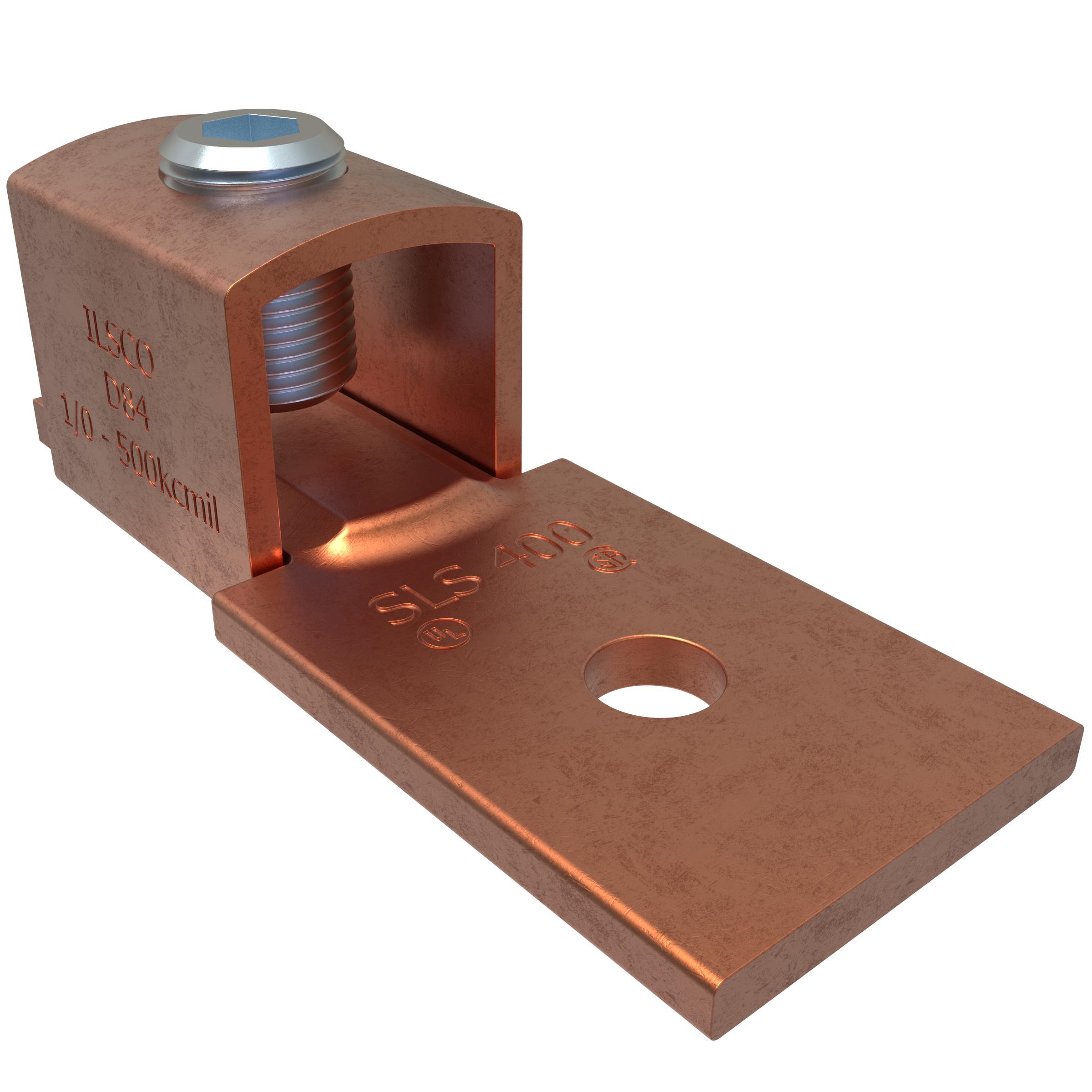

ILSCO SLS-400 ILSCO ClearChoice Mechanical Lug
Part Number # SLS-400
SKU # 2288857
Ilsco SLS-400 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLS-400 |
| SKU #: | 2288857 |
| Conductor Size: | 1/0 AWG to 500 kcmil |
| Conductor Type: | Copper |
| Dimensions: | 3-7/8 in L x 1-1/2 in W |
| Finish: | Electrolytic |
| Series: | SLS |
| Specifications: | 5/16 in Hex Socket Screw, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 2.1875 in L x 1.5 in W x 0.188 in THK |
| Tongue Type: | Offset/Straight, Straight/Offset |
| Type: | 1-Conductor Compact |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669825084 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO SLS-400 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: SLS-400
ILSCO ClearChoice Mechanical Lug, 1-Conductor Compact, Series: SLS, Copper Conductor, 1/0 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 2.1875 in L x 1.5 in W x 0.188 in THK Tongue, Straight/Offset Tongue, 2000 VAC, Specifications: 5/16 in Hex Socket Screw, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 3-7/8 in L x 1-1/2 in W
Additional Description: ILSC-SLS-400 (N) CU MEC 500-1/0 13/32 B UL CSA 2 HOLE STRAIGHT NON-CANCELABLE, NON-RETURNABLE STRA
Catalog Description: Copper Mechanical Lug Straight, Conductor Range 500-1/0, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
SLS-400 Application
For terminating connectorSLS-400 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
SLS-400 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #2288857Part Number #SLS-400UNSPSC39121408UPC00783669825084
Image provided may only be a representation of final product and may include optional equipment
