Part Number # SLS-70
SKU # 2359547
Image Disclaimers Message
Brand: Ilsco
SLS-70

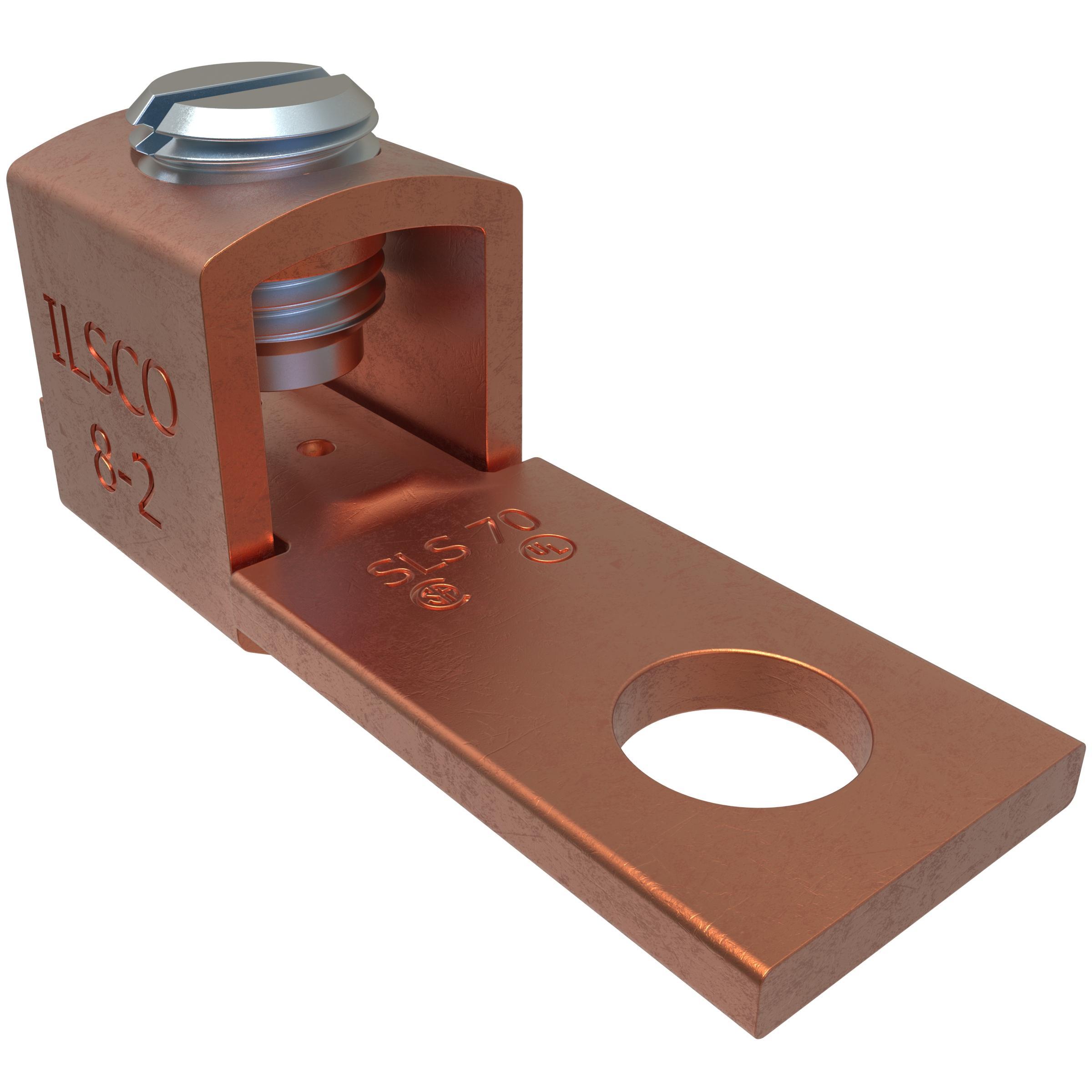

ILSCO SLS-70 ILSCO ClearChoice Mechanical Lug
Part Number # SLS-70
SKU # 2359547
$624.00 / 100Each
Ilsco SLS-70 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLS-70 |
| SKU #: | 2359547 |
| Conductor Size: | 8 to 2, 8 to 2 AWG |
| Conductor Type: | Copper |
| Dimensions: | 1.4688 in L x 0.5 in W |
| Finish: | Electrolytic |
| Series: | SLS |
| Specifications: | Slotted Hex, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.8125 in L x 1/2 in W x 0.083 in THK |
| Tongue Type: | Offset/Straight, Straight/Offset |
| Type: | 1-Conductor Compact |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669821611 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$624.00 / 100Each
Quantity:
ILSCO SLS-70 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: SLS-70
ILSCO ClearChoice Mechanical Lug, 1-Conductor Compact, Series: SLS, Copper Conductor, 8 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.8125 in L x 1/2 in W x 0.083 in THK Tongue, Straight/Offset Tongue, 2000 VAC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 1.4688 in L x 0.5 in W
Additional Description: ILSC-SLS-70 CU MEC 2-8 17/64 B UL CSA STRA IGHT
Catalog Description: Copper Mechanical Lug Straight, Conductor Range 2-8, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
SLS-70 Application
For terminating connectorSLS-70 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
SLS-70 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #2359547Part Number #SLS-70UNSPSC39121408UPC00783669821611
