SLU-175

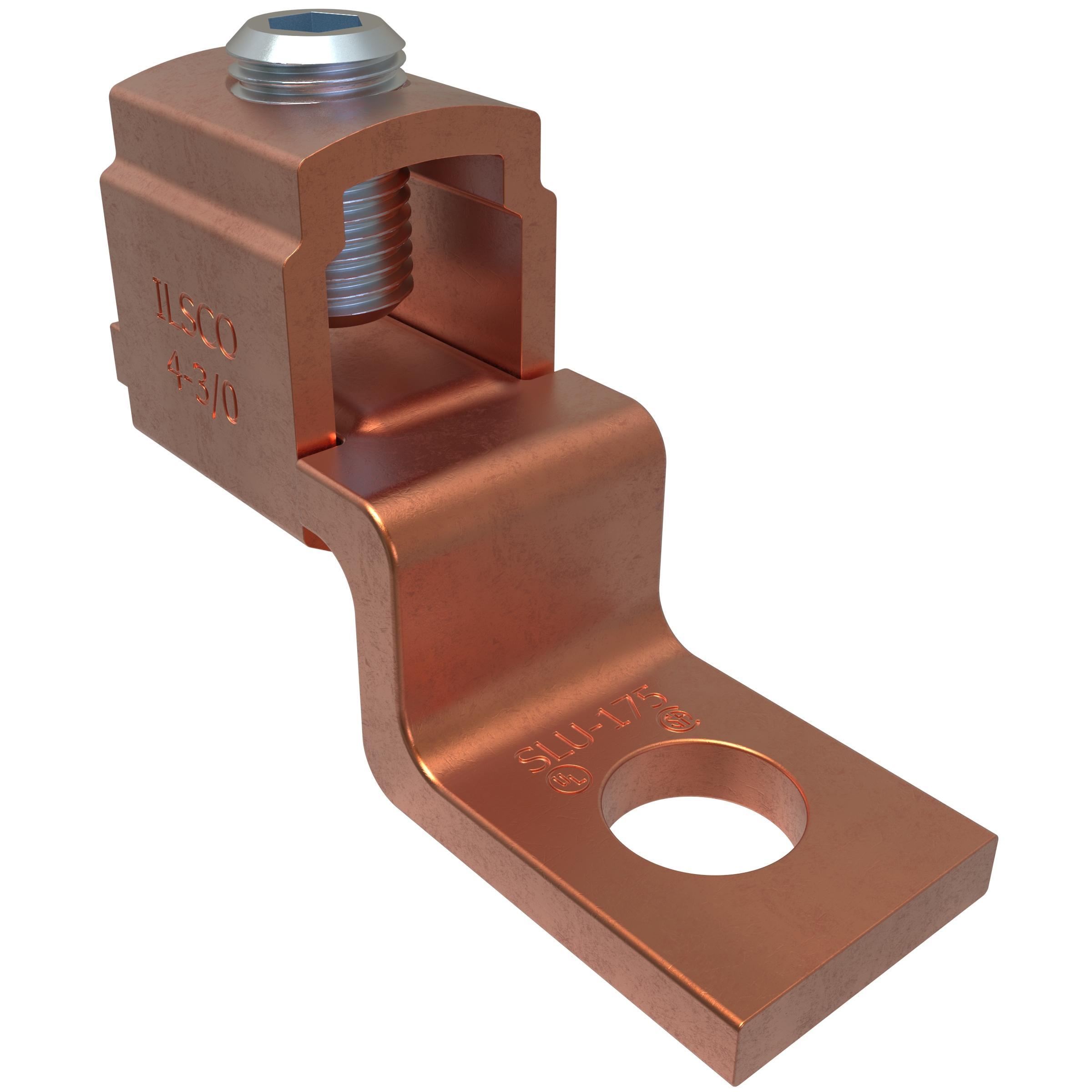

ILSCO SLU-175 ILSCO ClearChoice Mechanical Lug
Part Number # SLU-175
SKU # 19489
$577.82 / 25Each
Ilsco SLU-175 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLU-175 |
| SKU #: | 19489 |
| Conductor Size: | 4 to 3/0, 4 to 3/0 AWG |
| Conductor Type: | Copper |
| Dimensions: | 2-3/16 in L x 3/4 in W |
| Finish: | Electrolytic |
| Series: | SLU |
| Specifications: | 3/16 in Hex Socket Screw, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 15/16 in L x 3/4 in W |
| Tongue Type: | Offset/Straight, Straight/Offset |
| Type: | 1-Conductor Compact |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669832792 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$577.82 / 25Each
Quantity:
ILSCO SLU-175 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: SLU-175
ILSCO ClearChoice Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 4 to 3/0 AWG Conductor, 3/8 in Stud, 1 Bolt Holes, 15/16 in L x 3/4 in W Tongue, Straight/Offset Tongue, 2000 VAC, Specifications: 3/16 in Hex Socket Screw, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 2-3/16 in L x 3/4 in W
Additional Description: ILSC-SLU-175 CU MEC 3/0-4 13/32 B UL CSA OF FSET
Catalog Description: Copper Mechanical Lug Offset, Conductor Range 3/0-4, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
SLU-175 Application
For terminating connectorSLU-175 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
SLU-175 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #19489Part Number #SLU-175UNSPSC39121408UPC00783669832792
