Part Number # SLU-300
SKU # 2408853
SLU-300
ILSCO SLU-300 Mechanical Connectors
Part Number # SLU-300
SKU # 2408853
Ilsco SLU-300 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLU-300 |
| SKU #: | 2408853 |
| Conductor Size: | 1/0 AWG to 350 kcmil |
| Conductor Type: | Copper |
| Dimensions: | 3-3/16 in L x 1 in W |
| Finish: | Electrolytic |
| Series: | SLU |
| Specifications: | 5/16 in Hex Socket Screw, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90 deg C |
| Tongue Size: | 1-1/2 in L x 1 in W |
| Tongue Type: | Straight/Offset |
| Type: | 1-Conductor Compact |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669834710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO SLU-300 Mechanical Connectors
Brand: Ilsco
Part Number: SLU-300
ILSCO® ClearChoice® Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 1/0 AWG to 350 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-1/2 in L x 1 in W Tongue, Straight/Offset Tongue, 2000 VAC, Specifications: 5/16 in Hex Socket Screw, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 3-3/16 in L x 1 in W
Additional Description: ILSC-SLU-300 CU MEC 350-1/0 13/32 B UL CSA OFFSET
Catalog Description: Copper Mechanical Lug Offset, Conductor Range 350-1/0, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
SLU-300 Application
For terminating connectorSLU-300 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
SLU-300 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #2408853Part Number #SLU-300UNSPSC39121408UPC00783669834710

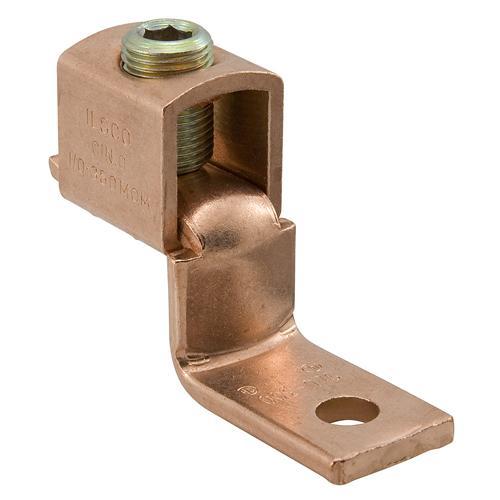

Image provided may only be a representation of final product and may include optional equipment
