Part Number # SLU-35
SKU # 19492
Image Disclaimers Message
Brand: Ilsco
SLU-35

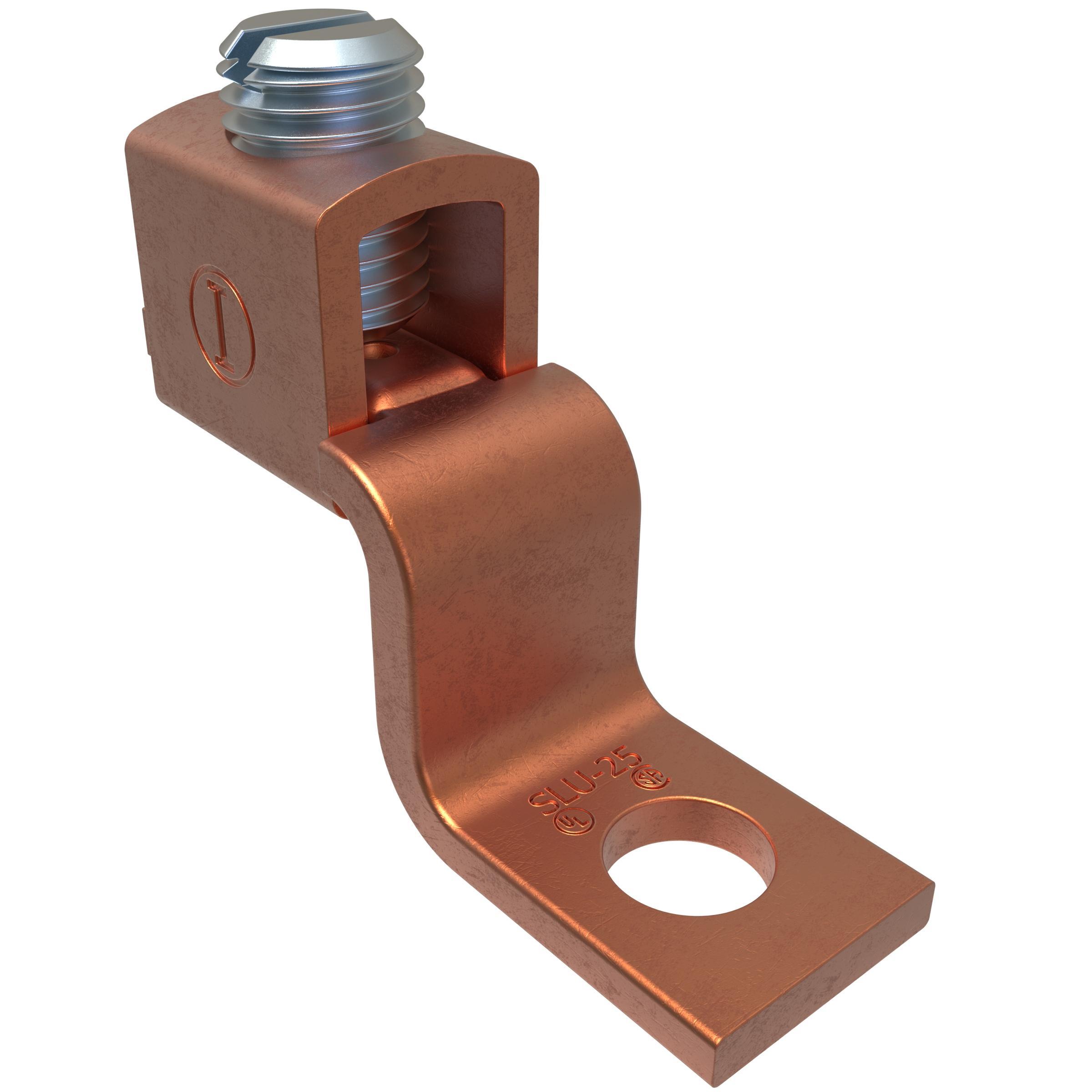

ILSCO SLU-35 ILSCO ClearChoice Mechanical Lug
Part Number # SLU-35
SKU # 19492
$438.21 / 100Each
Ilsco SLU-35 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLU-35 |
| SKU #: | 19492 |
| Conductor Size: | 14 to 6, 14 to 6 AWG |
| Conductor Type: | Copper |
| Dimensions: | 1-3/16 in L x 3/4 in W |
| Finish: | Electrolytic |
| Series: | SLU |
| Specifications: | Slotted Hex, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.4688 in L x 0.375 in W |
| Tongue Type: | Offset/Straight, Straight/Offset |
| Type: | 1-Conductor Compact |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669829464 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$438.21 / 100Each
Quantity:
- ILSCO ClearChoice Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 14 to 6 AWG Conductor, #10 Stud, 1 Bolt Holes, 0.4688 in L x 0.375 in W Tongue, Straight/Offset Tongue, 2000 V AC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 1-3/16 in L x 3/4 in W
SLU-35 Application
For terminating connectorSLU-35 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
SLU-35 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #19492Part Number #SLU-35UNSPSC39121408UPC00783669829464
