- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- Suitable for direct burial in earth or concrete and are UL 467 rated
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
Specifications
Brand: Ilsco
Conductor Size: 8 to 2, 8 to 2 AWG
Conductor Type: Copper
Dimensions: 1.5313 in L x 0.5 in W
Finish: Electrolytic
Series: SLU
Specifications: Slotted Hex, V-Bottom Collar
Temperature Rating (Degrees F): 90, 90 deg C
Tongue Size: 0.6563 in L x 1/2 in W
Tongue Type: Offset/Straight, Straight/Offset
Type: 1-Conductor Compact
Voltage Rating: 2000, 2000 VAC
Material: Copper
UNSPSC: 39121408
UPC: 00783669829990

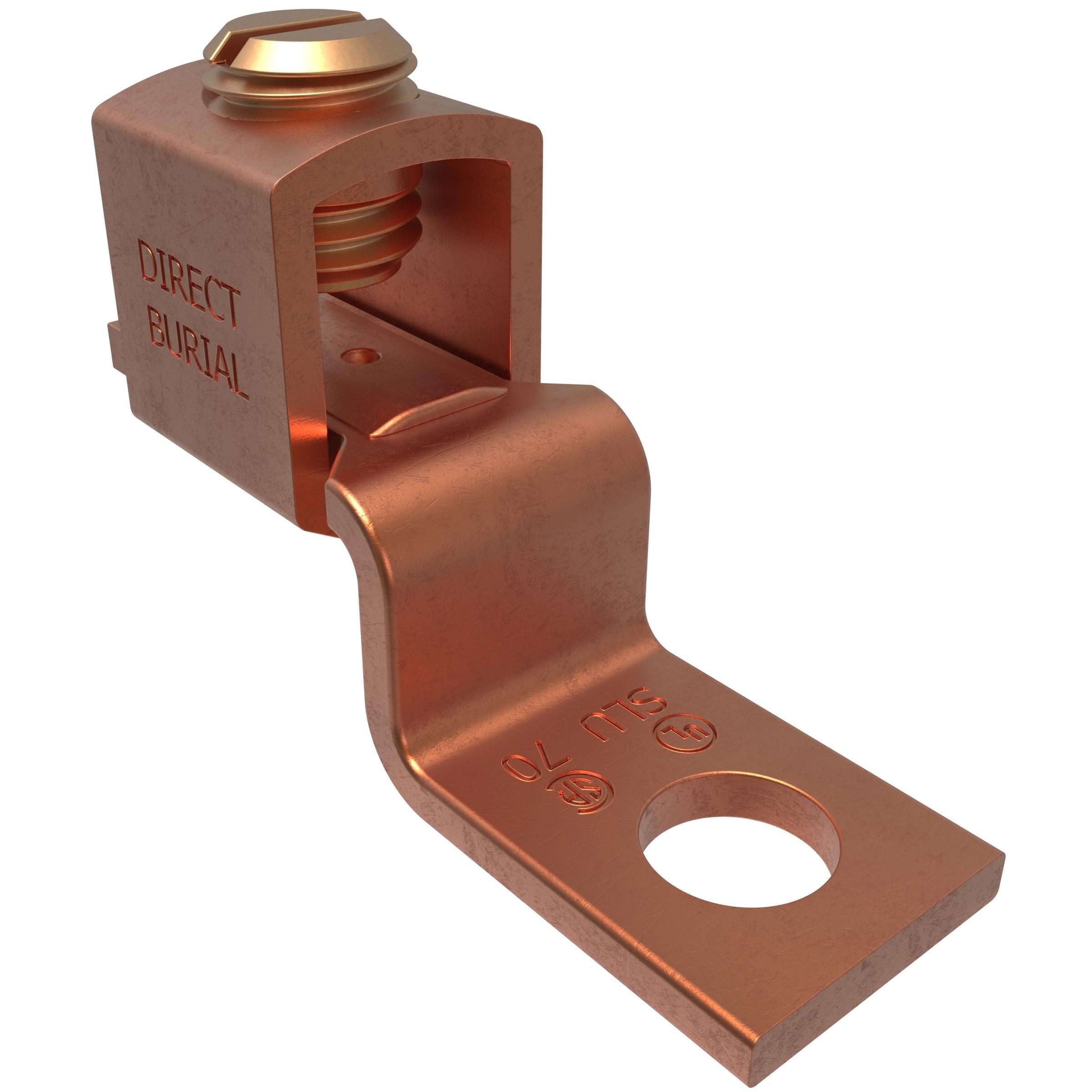

ILSCO SLU-70DB ILSCO ClearChoice Mechanical Lug
ILSCO ClearChoice Mechanical Lug, 1-Conductor Compact, Series: SLU, Copper Conductor, 8 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.6563 in L x 1/2 in W Tongue, Straight/Offset Tongue, 2000 VAC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electrolytic, 1.5313 in L x 0.5 in W
Additional Description: ILSC-SLU-70DB CU MEC 2-8 17/64 B UL CSA OFFSET DIRECT BURIAL DIRECT
Catalog Description: Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 1 Hole, 1/4in Bolt Size, Offset, Direct Bury, UL, CSA
Item Features
