SLUH-35

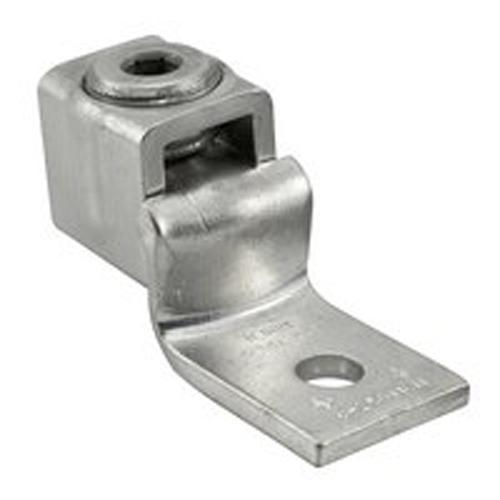

ILSCO SLUH-35 ILSCO ClearChoice Mechanical Lug
Part Number # SLUH-35
SKU # 19494
$704.32 / 100Each
Ilsco SLUH-35 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLUH-35 |
| SKU #: | 19494 |
| Conductor Size: | 14 to 6, 14 to 6 AWG |
| Conductor Type: | Copper |
| Dimensions: | 1-1/8 in L x 3/8 in W |
| Finish: | Electro-Plated Tin |
| Series: | SLUH |
| Specifications: | Slotted Hex, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1/2 in L x 3/8 in W |
| Tongue Type: | Straight |
| Type: | 1-Conductor 1-Stage Heavy Duty |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669839739 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$704.32 / 100Each
Quantity:
- ILSCO ClearChoice Mechanical Lug, 1-Conductor 1-Stage Heavy Duty, Series: SLUH, Copper Conductor, 14 to 6 AWG Conductor, #10 Stud, 1 Bolt Holes, 1/2 in L x 3/8 in W Tongue, Straight Tongue, 2000 V AC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electro-Plated Tin, 1-1/8 in L x 3/8 in W Dimensions
SLUH-35 Application
For terminating connectorSLUH-35 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Heavy duty design is especially suited for applications requiring light torque to withstand vibration and high ambient heat
- Range taking for reduced inventories and flexibility
- Re-usable
- Compact design saves space and reduces installation time
- Contact factory for listed wire combinations
- V-bottom collar
SLUH-35 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #19494Part Number #SLUH-35UNSPSC39121408UPC00783669839739
