SLUH-90

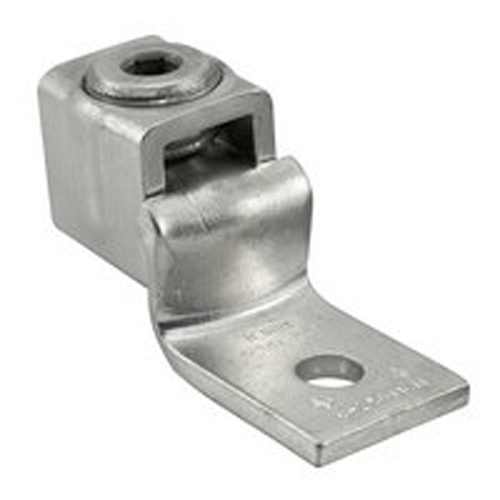

ILSCO SLUH-90 ILSCO ClearChoice Mechanical Lug
Part Number # SLUH-90
SKU # 19495
Ilsco SLUH-90 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SLUH-90 |
| SKU #: | 19495 |
| Conductor Size: | 14 to 2, 14 to 2 AWG |
| Conductor Type: | Copper |
| Dimensions: | 1.4844 in L x 0.5 in W |
| Finish: | Electro-Plated Tin |
| Series: | SLUH |
| Specifications: | Slotted Hex, V-Bottom Collar |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.625 in L x 0.5 in W x 0.109 in THK |
| Tongue Type: | Straight |
| Type: | 1-Conductor 1-Stage Heavy Duty |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669840957 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO SLUH-90 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: SLUH-90
ILSCO ClearChoice Mechanical Lug, 1-Conductor 1-Stage Heavy Duty, Series: SLUH, Copper Conductor, 14 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.625 in L x 0.5 in W x 0.109 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: Slotted Hex, V-Bottom Collar, 90 deg C, Copper, Electro-Plated Tin, 1.4844 in L x 0.5 in W Dimensions
Additional Description: ILSC-SLUH-90 CU MEC 2-14 17/64 T UL CSA
Catalog Description: Copper Mechanical Heavy Duty Lug Offset, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
SLUH-90 Application
For terminating connectorSLUH-90 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Heavy duty design is especially suited for applications requiring light torque to withstand vibration and high ambient heat
- Range taking for reduced inventories and flexibility
- Re-usable
- Compact design saves space and reduces installation time
- Contact factory for listed wire combinations
- V-bottom collar
SLUH-90 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #19495Part Number #SLUH-90UNSPSC39121408UPC00783669840957
