Brand: Ilsco
SPA-0

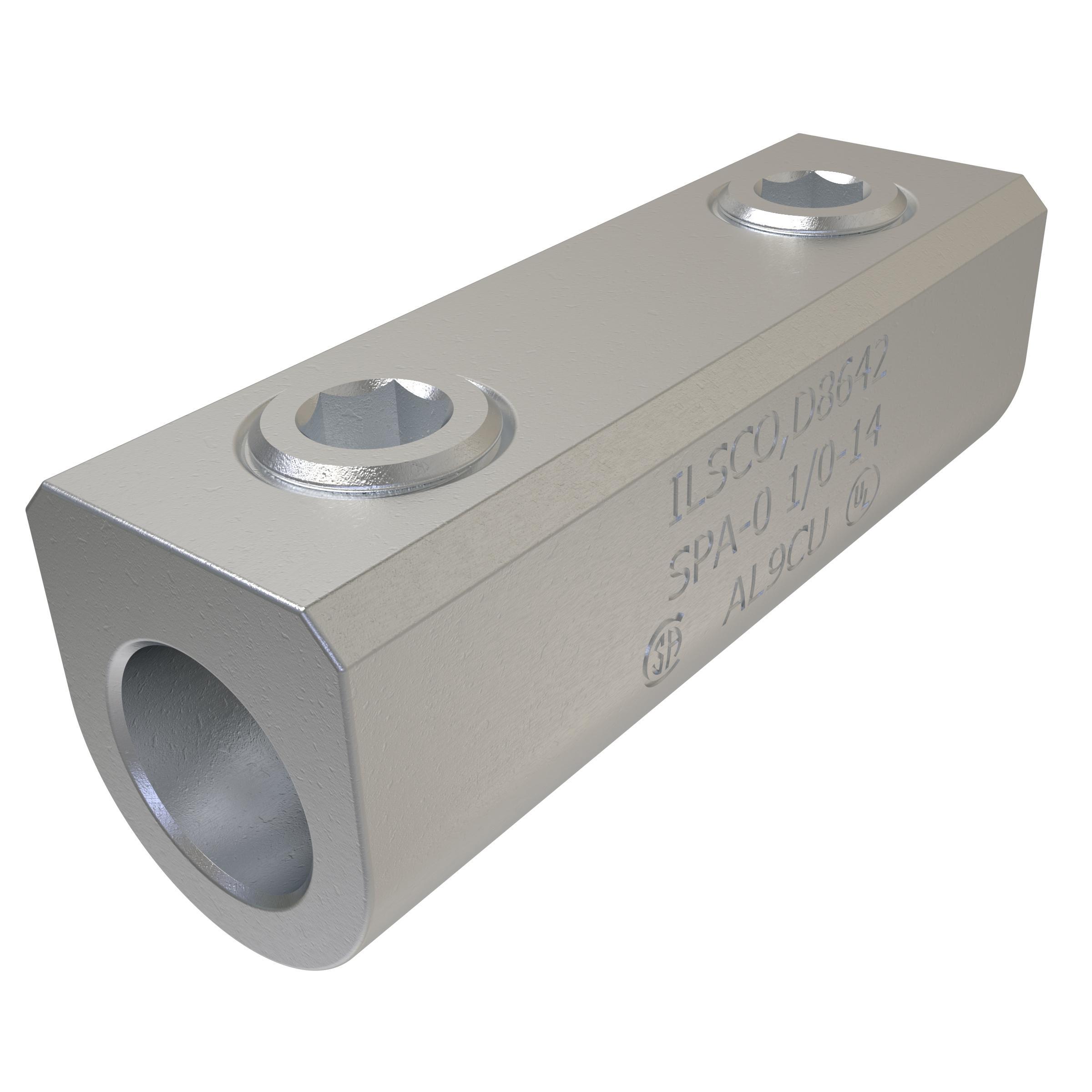

ILSCO SPA-0 ILSCO ClearChoice Splicer/Reducer
Part Number # SPA-0
SKU # 2238083
$266.46 / 10Each
Ilsco SPA-0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | SPA-0 |
| SKU #: | 2238083 |
| Conductor Size: | 14 to 1/0, 14 to 1/0 AWG |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1.9063 in L x 0.625 in W x 0.6875 in H |
| Finish: | Electro-Plated Tin |
| Specifications: | 3/16 in Hex, 7/16 in Dia Screw |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type SPA Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669857023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$266.46 / 10Each
Quantity:
- ILSCO ClearChoice Splicer/Reducer, Type SPA Dual Rated, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 2 Screws, 2000 V AC, Specifications: 3/16 in Hex, 7/16 in Dia Screw, 90 deg C, Aluminum, Electro-Plated Tin, 1.9063 in L x 0.625 in W x 0.6875 in H Dimensions
SPA-0 Application
For use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniquesSPA-0 Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Rounded bottoms facilitates taping
- Electro tin plated for low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Dual-rated for aluminum and copper conductor
- 350 to 2 have rounded bottoms and 1000 to 500 have flat bottoms
SPA-0 Standards
CSA File No. LR29601|UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.govSKU #2238083Part Number #SPA-0UNSPSC39121408UPC00783669857023
