Part Number # T3A2-0
SKU # 19498
T3A2-0
ILSCO T3A2-0 ILSCO ClearChoice Mechanical Terminal Lug
Part Number # T3A2-0
SKU # 19498
Ilsco T3A2-0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | T3A2-0 |
| SKU #: | 19498 |
| Dimensions: | 2.906 in L x 1.938 in W x 0.875 in H |
| Finish: | Electro-Plated Tin |
| Material: | 6061-T6 Aluminum Alloy |
| Series: | T3A |
| Specifications: | Slotted Hex, 1 in Mounting Hole Spacing |
| Tongue Size: | 2.156 in L x 1.938 in W x 1/4 in THK |
| Type: | 3-Conductor Dual Rated |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669895902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO T3A2-0 ILSCO ClearChoice Mechanical Terminal Lug
Brand: Ilsco
Part Number: T3A2-0
ILSCO ClearChoice Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 14 to 1/0 AWG Conductor, 3/8 in Stud, 3 Bolt Holes, 2.156 in L x 1.938 in W x 1/4 in THK Tongue, Straight Tongue, 2000 V AC, Slotted Hex, 1 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.906 in L x 1.938 in W x 0.875 in H
Additional Description: ILSC-T3A2-0 AL MEC (3)1/0-14 7/16-1 T UL C SA
Catalog Description: Aluminum Mechanical Lug, Conductor Range 1/0-14, 3 Ports, 2 Holes, 3/8in Bolt Size, Tin Plated, UL, CSA
T3A2-0 Application
Terminating Connector ApplicationsT3A2-0 Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
- 2-studs
T3A2-0 Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #19498Part Number #T3A2-0UNSPSC39121408UPC00783669895902

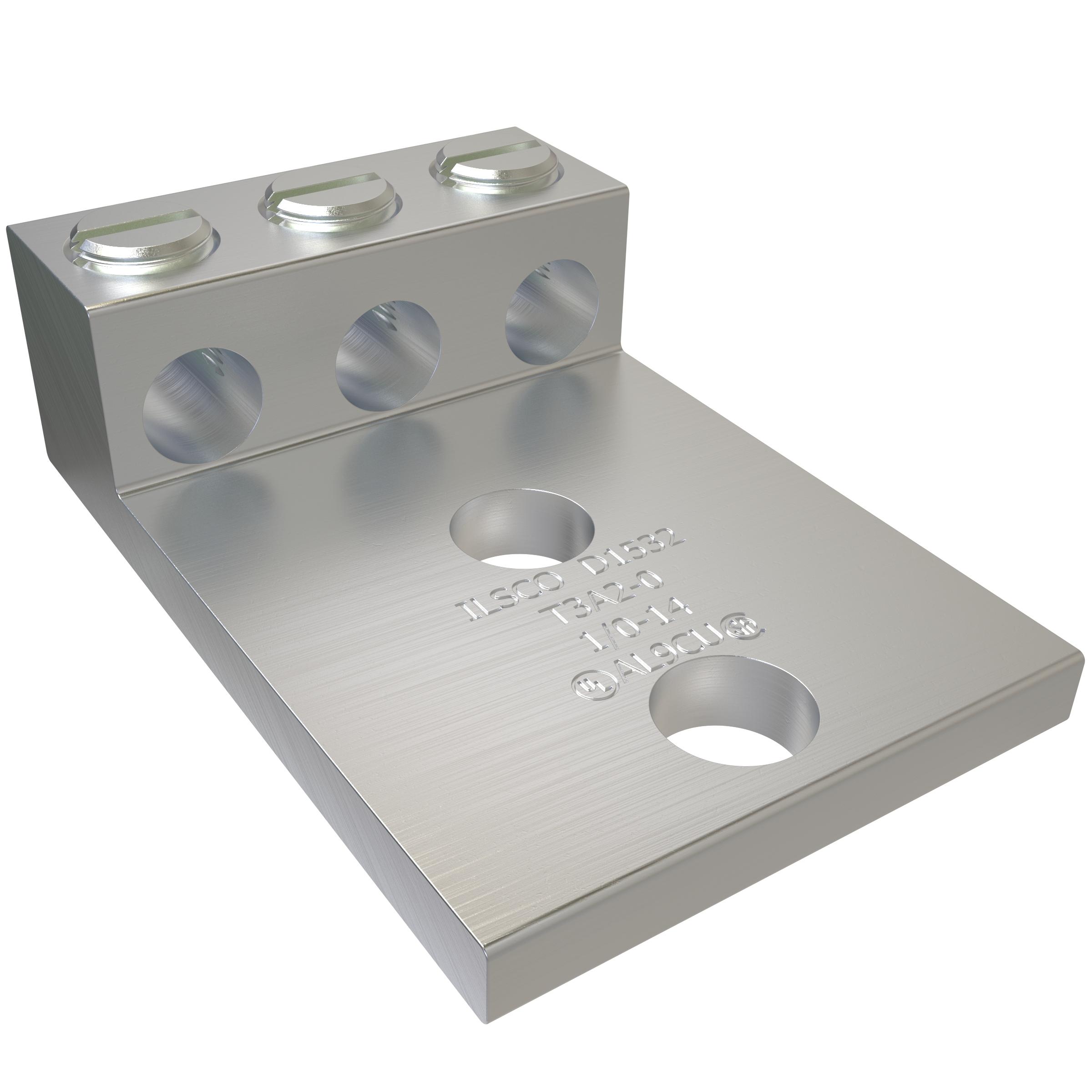

Image provided may only be a representation of final product and may include optional equipment
