T3A2-250N

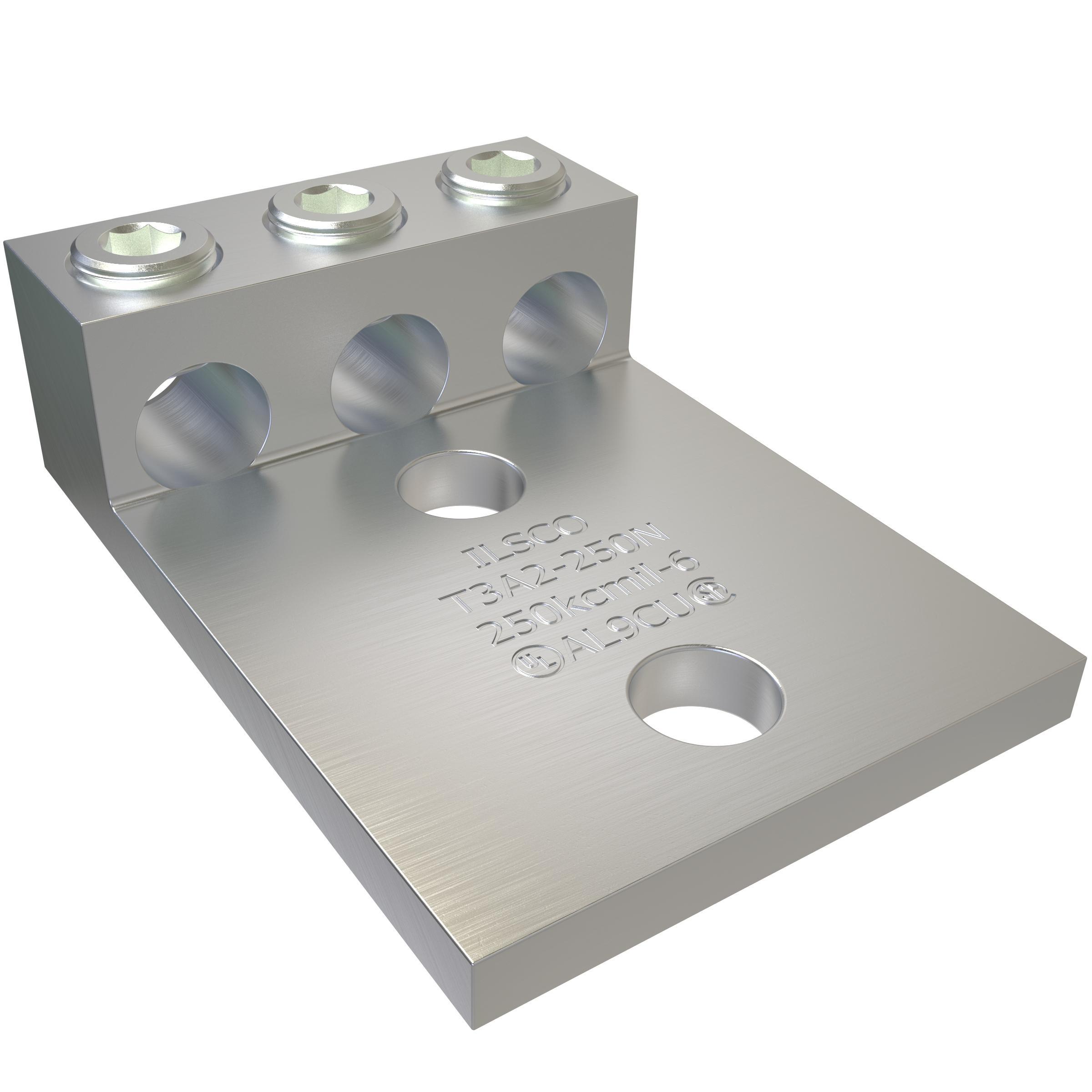

ILSCO T3A2-250N ILSCO ClearChoice Mechanical Terminal Lug
Part Number # T3A2-250N
SKU # 2223753
Ilsco T3A2-250N Key Features
Brand: | Ilsco |
---|---|
Part Number # : | T3A2-250N |
SKU #: | 2223753 |
Conductor Size: | 6 AWG to 250 kcmil |
Conductor Type: | Aluminum/Copper |
Dimensions: | 4 in L x 2.813 in W x 1.187 in H |
Finish: | Electro-Plated Tin |
Series: | T3A |
Specifications: | 5/16 in Hex, 1-3/4 in Mounting Hole Spacing |
Temperature Rating (Degrees F): | 90, 90 deg C |
Tongue Size: | 3 in L x 2.813 in W x 0.312 in THK |
Tongue Type: | Straight |
Type: | 3-Conductor Dual Rated |
Country of origin: | MX |
Material: | 6061-T6 Aluminum Alloy |
Manufacturer Name: | ECM Industries |
UNSPSC: | 39121408 |
UPC: | 00783669898309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO T3A2-250N ILSCO ClearChoice Mechanical Terminal Lug
Brand: Ilsco
Part Number: T3A2-250N
ILSCO ClearChoice Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 1/2 in Stud, 3 Bolt Holes, 3 in L x 2.813 in W x 0.312 in THK Tongue, Straight Tongue, 2000 VAC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 4 in L x 2.813 in W x 1.187 in H
Additional Description: ILSC-T3A2-250N AL MEC (3)250-6 9/16-1-3/4 T U L CSA
Catalog Description: Aluminum Mechanical Lug, Dual Rated, Conductor Range 250-6, 3 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
T3A2-250N Application
Terminating Connector ApplicationsT3A2-250N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
- 2-studs
T3A2-250N Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #2223753Part Number #T3A2-250NUNSPSC39121408UPC00783669898309
