Part Number # T3A2-350N
SKU # 2298309
Image Disclaimers Message
Brand: Ilsco
T3A2-350N

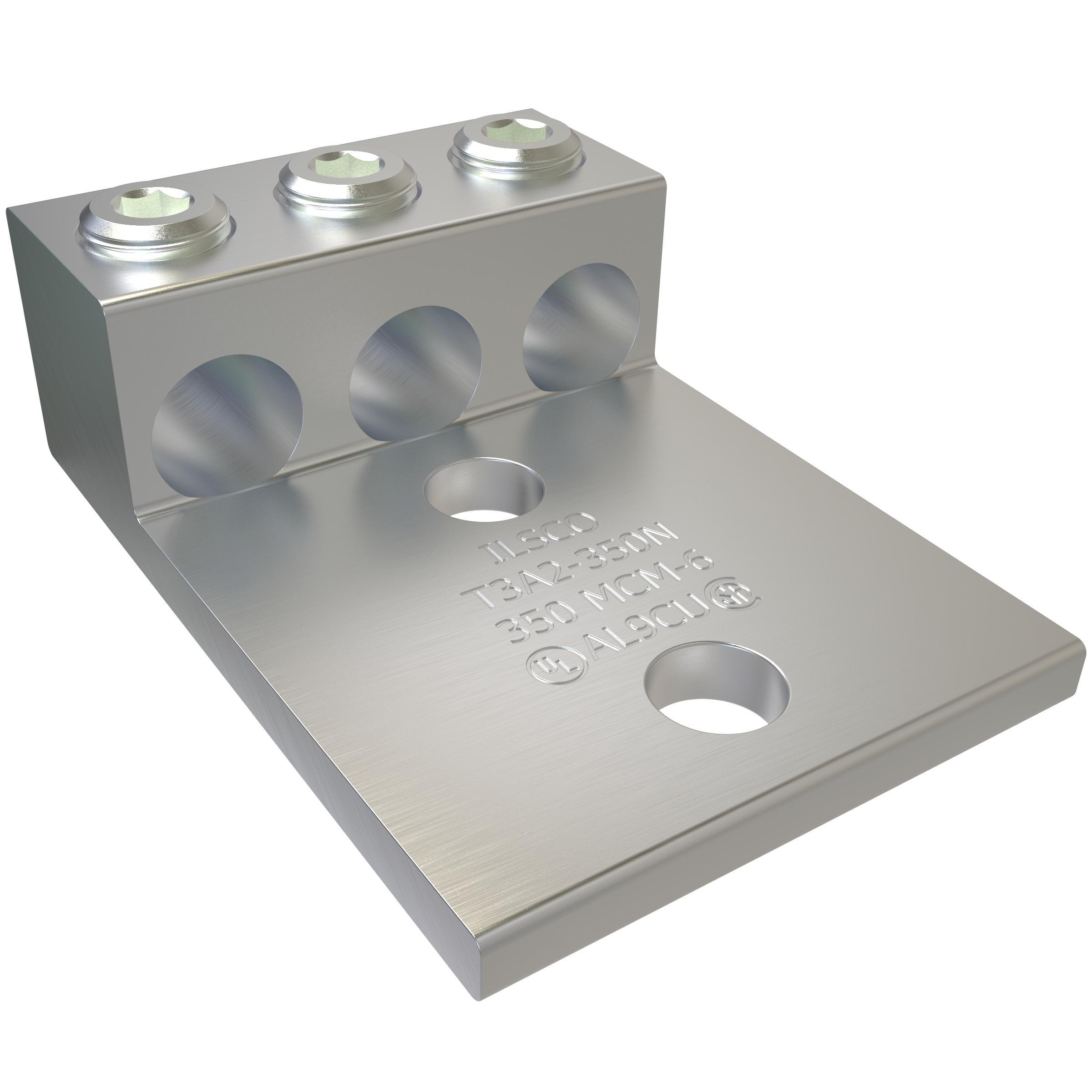

ILSCO T3A2-350N ILSCO ClearChoice Mechanical Terminal Lug
Part Number # T3A2-350N
SKU # 2298309
$271.68 / Each
Ilsco T3A2-350N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | T3A2-350N |
| SKU #: | 2298309 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 4.312 in L x 3 in W x 1.375 in H |
| Finish: | Electro-Plated Tin |
| Series: | T3A |
| Specifications: | 5/16 in Hex, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 3 in W x 0.312 in THK |
| Tongue Type: | Straight |
| Type: | 3-Conductor Dual Rated |
| Country of origin: | US |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669899450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$271.68 / Each
Quantity:
- ILSCO ClearChoice Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 3 Bolt Holes, 3 in L x 3 in W x 0.312 in THK Tongue, Straight Tongue, 2000 V AC, 5/16 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 4.312 in L x 3 in W x 1.375 in H
T3A2-350N Application
Terminating Connector ApplicationsT3A2-350N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
- 2-studs
T3A2-350N Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #2298309Part Number #T3A2-350NUNSPSC39121408UPC00783669899450
