T3A4-1000N

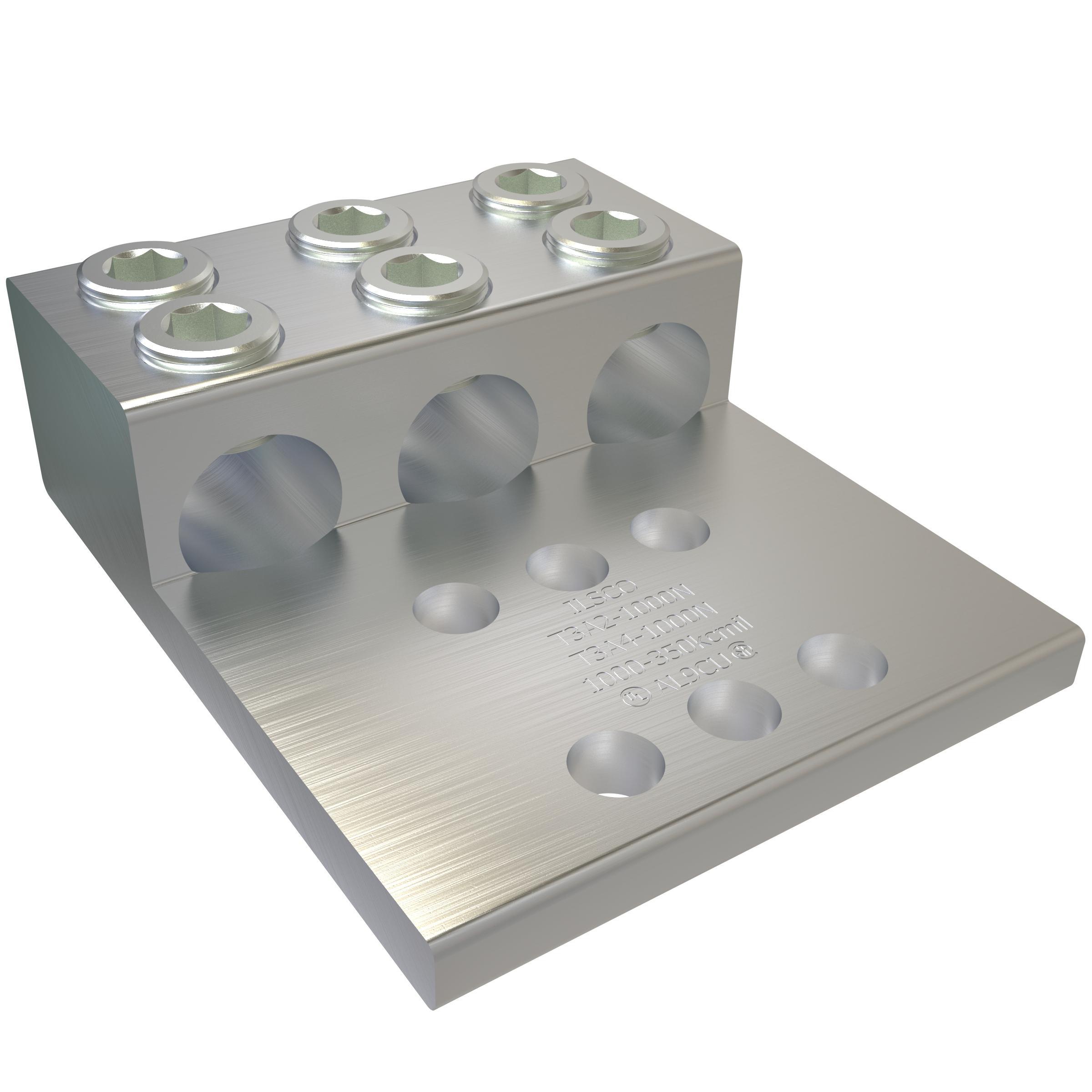

ILSCO T3A4-1000N ILSCO ClearChoice Mechanical Lug
Part Number # T3A4-1000N
SKU # 2282412
Ilsco T3A4-1000N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | T3A4-1000N |
| SKU #: | 2282412 |
| Conductor Size: | 350 to 1000, 350 to 1000 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 5.97 in L x 4.875 in W x 1.813 in H |
| Finish: | Electro-Plated Tin |
| Series: | T3A |
| Specifications: | 1/2 in Hex, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3-5/8 in L x 4-7/8 in W x 1/2 in THK |
| Tongue Type: | Straight |
| Type: | 3-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669911992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO T3A4-1000N ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: T3A4-1000N
ILSCO ClearChoice Mechanical Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 350 to 1000 kcmil Conductor, 1/2 in Stud, 6 Bolt Holes, 3-5/8 in L x 4-7/8 in W x 1/2 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, Aluminum, Electro-Plated Tin, 5.97 in L x 4.875 in W x 1.813 in H Dimensions
Additional Description: ILSC-T3A4-1000N AL MEC (3)1000-500 (4)9/16-1-3 /4 T UL CS
Catalog Description: Aluminum Mechanical Lug, Dual Rated, Conductor Range 1000-500, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A2-1000N
T3A4-1000N Application
For terminating connectorT3A4-1000N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 6 stud of 1/2 in
T3A4-1000N Standards
CSA File No. LR-29601|UL 486A-B/UL 453G/UL File No. E6207SKU #2282412Part Number #T3A4-1000NUNSPSC39121408UPC00783669911992
