T3A4-800N

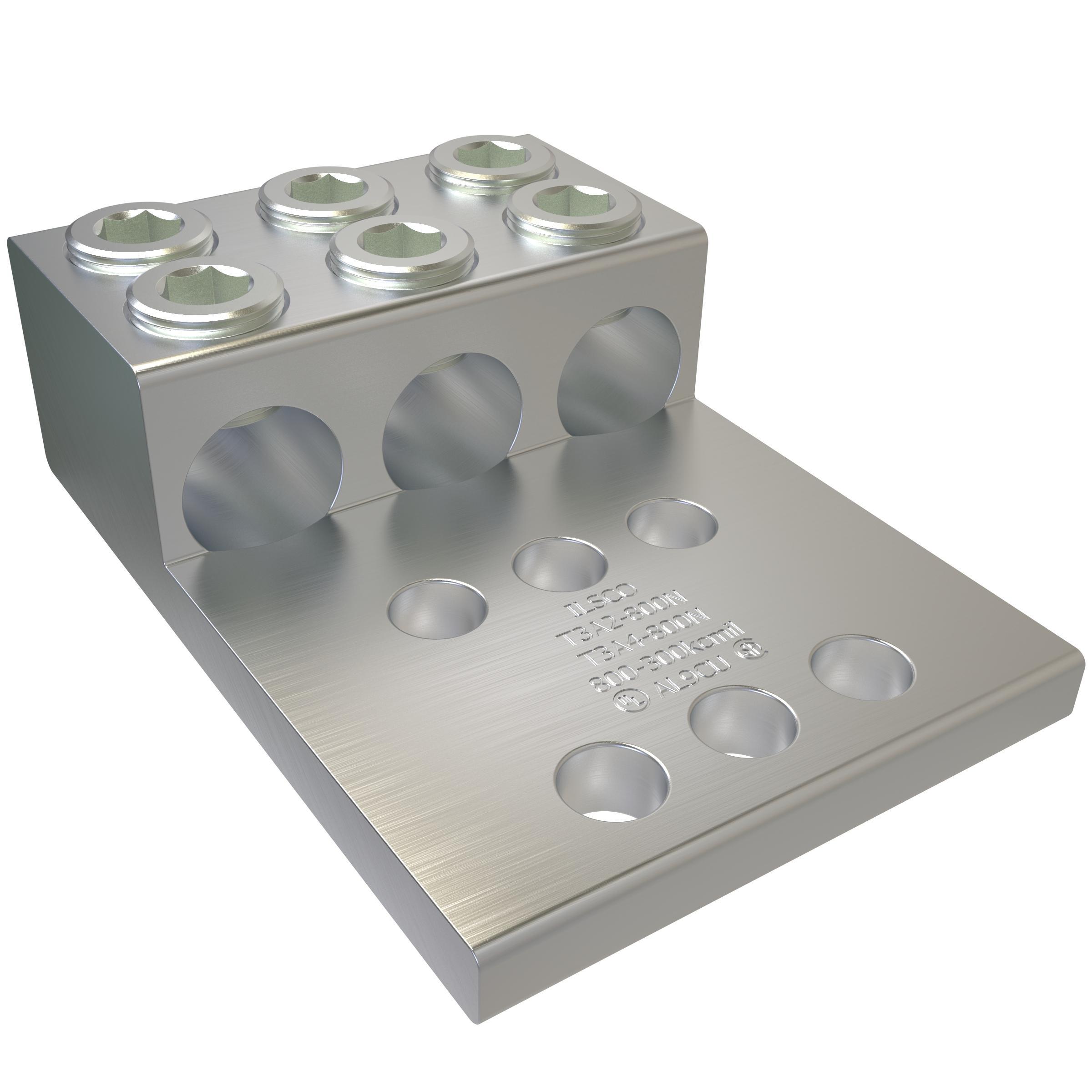

ILSCO T3A4-800N ILSCO ClearChoice Mechanical Terminal Lug
Part Number # T3A4-800N
SKU # 2304771
Ilsco T3A4-800N Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | T3A4-800N |
| SKU #: | 2304771 |
| Conductor Size: | 350 to 800, 350 to 800 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 5.97 in L x 4.125 in W x 1.813 in H |
| Finish: | Electro-Plated Tin |
| Series: | T3A |
| Specifications: | 1/2 in Hex, 1-3/4 in Mounting Hole Spacing |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3-5/8 in L x 4-1/8 in W x 1/2 in THK |
| Tongue Type: | Straight |
| Type: | 3-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669910414 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO T3A4-800N ILSCO ClearChoice Mechanical Terminal Lug
Brand: Ilsco
Part Number: T3A4-800N
ILSCO ClearChoice Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 350 to 800 kcmil Conductor, 1/2 in Stud, 6 Bolt Holes, 3-5/8 in L x 4-1/8 in W x 1/2 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 5.97 in L x 4.125 in W x 1.813 in H
Additional Description: ILSC-T3A4-800N AL MEC (3)800-350 (4)9/16-1-3/ 4 T UL CSA
Catalog Description: Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A2-800N
T3A4-800N Application
Terminating Connector ApplicationsT3A4-800N Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
T3A4-800N Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #2304771Part Number #T3A4-800NUNSPSC39121408UPC00783669910414
