TA-2/0

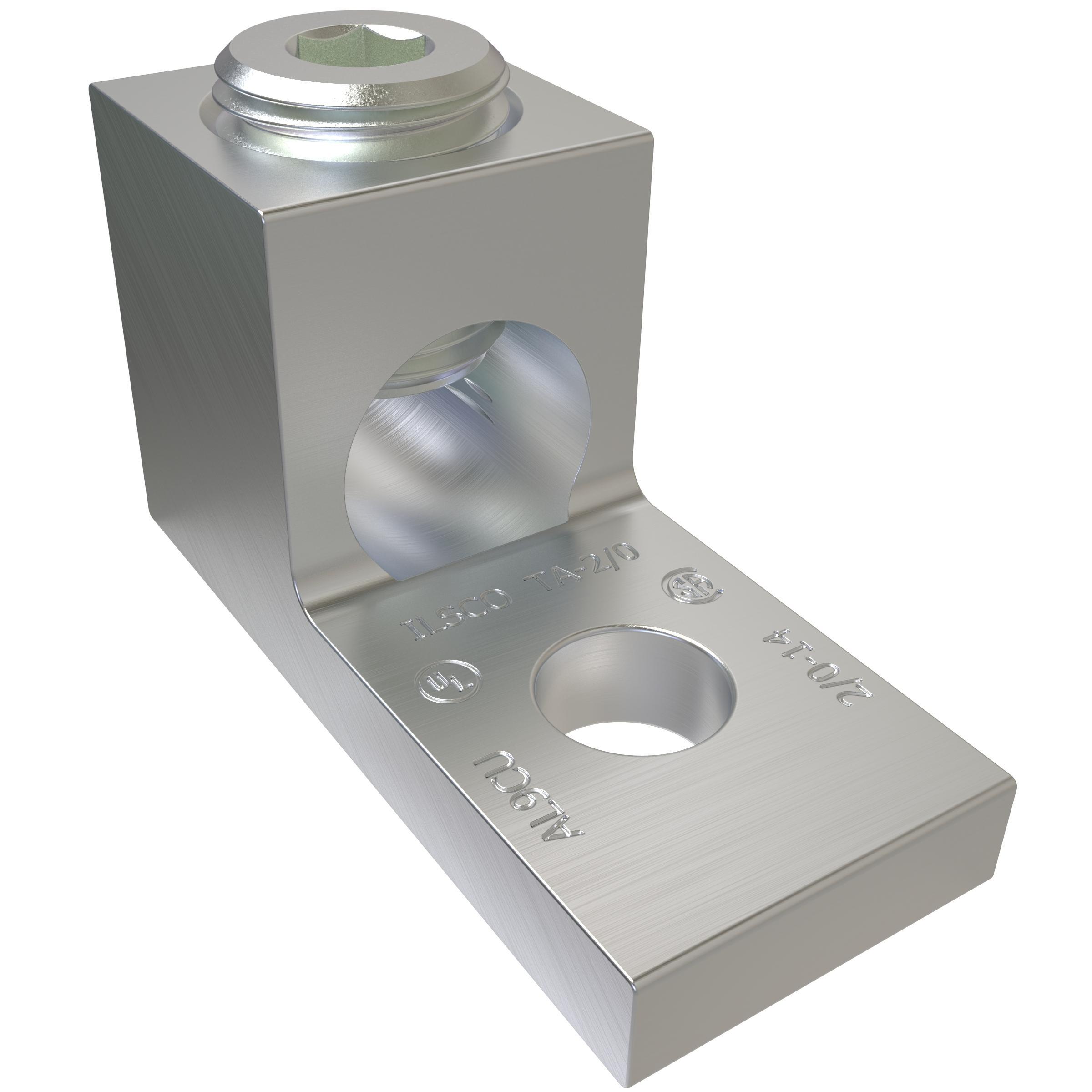

ILSCO TA-2/0 ILSCO ClearChoice Mechanical Terminal Lug
Part Number # TA-2/0
SKU # 19507
Ilsco TA-2/0 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | TA-2/0 |
| SKU #: | 19507 |
| Conductor Size: | 14 to 2/0, 14 to 2/0 AWG |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 1.4688 in L x 0.625 in W x 0.794 in H |
| Finish: | Electro-Plated Tin |
| Series: | TA Series |
| Specifications: | 3/16 in Hex |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.843 in L x 0.625 in W x 0.187 in THK |
| Tongue Type: | Straight |
| Type: | 1-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669177497 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO TA-2/0 ILSCO ClearChoice Mechanical Terminal Lug
Brand: Ilsco
Part Number: TA-2/0
ILSCO ClearChoice Mechanical Terminal Lug, 1-Conductor Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.843 in L x 0.625 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, 3/16 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 1.4688 in L x 0.625 in W x 0.794 in H
Additional Description: ILSC-TA-2/0 AL MECH 2/0-14 17/64 T UL CSA
Catalog Description: Aluminum Mechanical Lug, Conductor Range 2/0-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
TA-2/0 Application
Terminating Connector ApplicationsTA-2/0 Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1-stud
- Suitable for use with either copper or aluminum conductors
TA-2/0 Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #19507Part Number #TA-2/0UNSPSC39121408UPC00783669177497
